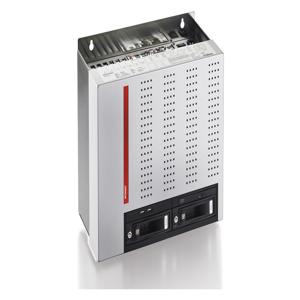

C6650-0070 - Beckhoff Control Cabinet Industrial PCs
C6650-0070 Beckhoff Control Cabinet Industrial PCs Technical Specifications
| Brand | Beckhoff |
| Product Type | Control Cabinet Industrial PCs |
| Product | C6650-0070 |
C6650-0070 Beckhoff Control Cabinet Industrial PCs Technical Specifications
| Specification | Value |
|---|---|
| Device type | Control cabinet PC |
| Housing | stainless steel based housing |
| Slots for hard disk/flash | 2 removable frames for hard disks |
| Protection rating | IP20 |
| Operating temperature | 0…55°C |
| Weight of basic configuration | 12 kg (26.5 lbs) |
| Dimensions (W x H x D) | 410 x 360 x 201 mm (16.1" x 14.2" x 7.9") |
| Processor | Intel®Celeron®G6900E 3.0 GHz base frequency, 2 cores (TC3: 50) |
| Motherboard | ATX motherboard for 12th/13thgeneration Intel®Celeron®, Pentium®, Core⢠i3/i5/i7/i9 |
| PCIe®/PCI™ slots | 2 x PCIe® x1, 4 x PCIe® x4, 1 x PCIe® x16, for up to 210 mm long plug-in cards, 1 x M.2 socket PCIe® x4 for 1 NVMeâ¢M.2 SSD |
| Memory | 16 GB DDR5 RAM |
| Graphic | integrated in the processor |
| Ethernet | 2 x 100/1000/2500BASE-T and 1 x 100/1000BASE-T on-board |
| RAID | on-board RAID 1 controller for SATA and NVMeâ¢/PCIe® |
| Hard disks/flash | 160 GB NVMe⢠M.2 SSD |
| Interfaces | 6 x USB 3.2 Gen. 2, 1 x USB type C, 2 x DVI, 1 x DisplayPort, 1 x RS232 |
| Power supply | 100…240 V AC |
