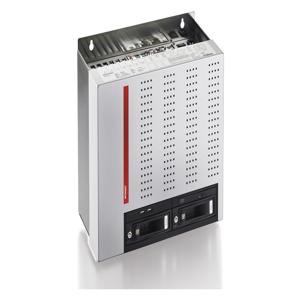

C6650-0050 - Beckhoff Control Cabinet Industrial PCs
Beckhoff Control Cabinet Industrial PCs like the C6650-0050 provide high computing performance in a compact housing, built for automation, control, and data-intensive tasks.
| Brand | Beckhoff |
| Product Type | Control Cabinet Industrial PCs |
| Product | C6650-0050 |
C6650-0050 Beckhoff Control Cabinet Industrial PCs Technical Specifications
| Specification | Value |
|---|---|
| Device type | Control cabinet PC |
| Housing | stainless steel based housing |
| Slots for hard disk/flash | 2 removable frames for hard disks |
| Protection rating | IP20 |
| Operating temperature | 0…55°C |
| Weight of basic configuration | 12 kg (26.5 lbs) |
| Dimensions (W x H x D) | 410 x 360 x 201 mm (16.1" x 14.2" x 7.9") |
| Processor | Intel®Celeron®G3900 2.8 GHz, 2 cores (TC2, TC3: 50) |
| Motherboard | ATX motherboard for 6th/7thgeneration Intel®Celeron®, Pentium®, Core⢠i3/i5/i7 |
| PCIe®/PCI™ slots | 2 x PCIe® x1, 2 x PCIe® x4, 1 x PCIe® x16, 2 x PCI⢠for up to 210 mm long plug-in cards |
| Memory | 4 GB DDR4 RAM |
| Graphic | integrated in the processor |
| Ethernet | 2 x 100/1000BASE-T on-board |
| RAID | on-board SATA RAID 1 controller |
| Hard disks/flash | hard disk, 3½-inch, 1 TB, in removable frame |
| Interfaces | 4 x USB 3.0, 2 x DVI, 1 x DisplayPort, 1 x RS232, PS/2 keyboard and mouse |
| Power supply | 100…240 V AC |
The Beckhoff C6650-0050 Control Cabinet Industrial PC is designed for advanced automation and industrial control. It runs on an Intel Celeron G3900 dual-core 2.8GHz processor and supports 6th and 7th generation Intel Pentium and Core i3/i5/i7 CPUs through its robust ATX motherboard. Equipped with 4GB DDR4 RAM and integrated graphics, it ensures smooth system performance for real-time applications. Storage is provided via a 1TB 3.5-inch hard disk housed in a removable frame, supported by an onboard SATA RAID 1 controller for redundancy. Expansion flexibility includes PCIe x1, x4, and x16 slots, along with PCI for additional plug-in cards. Connectivity features dual Gigabit Ethernet ports, USB 3.0 interfaces, DVI, DisplayPort, RS232, and PS/2 connections. With its IP20 stainless steel housing, a 100–240V AC power supply, and an operating temperature range from 0°C to 55°C, this 12 kg system is optimized for continuous industrial operation.
In industrial use, the C6650-0050 Beckhoff Control Cabinet PC is trusted in machine automation, process monitoring, and large-scale control systems. Its rugged design and removable storage frames make it convenient for maintenance, while the redundant RAID system ensures secure data handling. The unit’s compact size allows integration into control rooms with limited space, while its scalability supports future expansion. Maintenance teams value the accessibility and reliability, engineers rely on its computing strength for complex automation tasks, and buyers see it as a long-term investment due to its durability and proven Beckhoff quality. With performance, expandability, and industrial-grade reliability, the Beckhoff C6650-0050 Control Cabinet Industrial PC is a dependable choice for modern automation environments.
