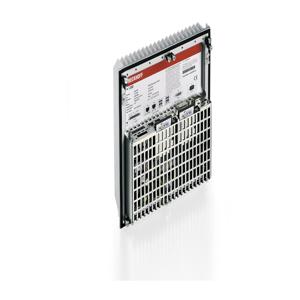

C6515-0060 - Beckhoff Fanless Built-in Industrial PCs
Technical Specifications of Beckhoff Fanless Built-in Industrial PCs C6515-0060:
| Brand | Beckhoff |
| Product Type | Fanless Built-in Industrial PCs |
| Product | C6515-0060 |
C6515-0060 Beckhoff Fanless Built-in Industrial PCs Technical Specifications
| Specification | Value |
|---|---|
| Device type | Fanless built-in Industrial PC with external cooling to be mounted in the back panel of a control housing or in the wall of a control cabinet |
| Slots for hard disk/flash | 2 slots for CFast |
| Cooling | passive through heat sink structure outside |
| Free space for air circulation | 20 cm (7.9") around the heat sink required |
| Protection rating | outside IP65, inside IP20 |
| Operating temperature | outside 0…45°C, inside 0…55°C |
| Weight of basic configuration | 3 kg (6.6 lbs) |
| Dimensions (W x H x D) | 240 x 230 x 81 mm (9.5" x 9.1" x 3.2") |
| Processor | Intel®Celeron®G3900TE 2.3 GHz, 2 cores (TC2, TC3: 50) |
| Motherboard | 3½-inch motherboard for 6th/7thgeneration Intel®Celeron®, Pentium®, Core⢠i3/i5/i7 |
| Memory | 4 GB DDR4 RAM |
| Graphic | integrated in the processor |
| Ethernet | 2 x 100/1000BASE-T on-board |
| RAID | on-board SATA RAID 1 controller |
| Hard disks/flash | 40 GB CFast card |
| Interfaces | 4 x USB 3.0, 1 x RS232, 1 x DVI |
| Power supply | 24 V DC |
