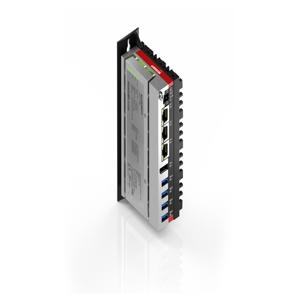

Beckhoff C6025-0010 Ultra Compact Industrial PCs
The Beckhoff C6025-0010 Ultra Compact Industrial PCs offers a Intel®Celeron®6305E 1.8 GHz base frequency, 2 cores (TC3: 50)processor, 8 GB DDR4 RAM memory, 24 V DC power supply, IP20 protection rating. Manufactured by Beckhoff under the Beckhoff Ultra Compact Industrial PCs category, this model belongs to the Beckhoff C6 Series.
| Brand | Beckhoff |
| Product Type | Ultra Compact Industrial PCs |
| Product | C6025-0010 |
Beckhoff C6025-0010 Ultra Compact Industrial PCs – Technical Specifications
| Specification | Value |
|---|
| Device type | Ultra-compact control cabinet PC |
| Housing | aluminum zinc die-cast housing |
| Installation | mounting sheet at the rear wall |
| Slots for hard disk/flash | 1 slot for M.2 SSD |
| Cooling | passive with single side cooling plate |
| Free space for air circulation | 5 cm (2") on top and bottom of the PC required |
| Protection rating | IP20 |
| Operating temperature | 0…50°C |
| Dimensions (W x H x D) | 82 x 127 x 47 mm (3.2â x 5â x 1.9â), without mounting plate |
| Processor | Intel®Celeron®6305E 1.8 GHz base frequency, 2 cores (TC3: 50) |
| Motherboard | compact motherboard for 11thgeneration Intel®Celeron®, Core⢠i3/i5/i7, U series |
| Memory | 8 GB DDR4 RAM |
| Graphic | integrated in the processor |
| Ethernet | 2 x 100/1000/2500BASE-T and 1 x 100/1000BASE-T on-board |
| Hard disks/flash | 40 GB M.2 SSD |
| Interfaces | 4 x USB 3.2 Gen. 2, 1 x DisplayPort |
| Power supply | 24 V DC |
