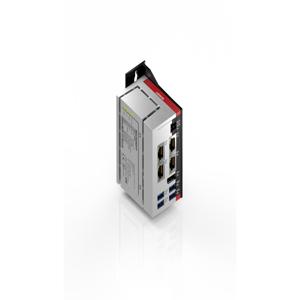

Beckhoff C6017-0030 Ultra Compact Industrial PCs
The Beckhoff C6017-0030 Ultra Compact Industrial PCs offers a Intel Atom®x6214RE, 1.4 GHz, 2 cores (TC3: 40)processor, 4 GB DDR4 RAM memory, 24 V DC power supply, IP20 protection rating. Manufactured by Beckhoff under the Beckhoff Ultra Compact Industrial PCs category, this model belongs to the Beckhoff C6 Series.
| Brand | Beckhoff |
| Product Type | Ultra Compact Industrial PCs |
| Product | C6017-0030 |
Beckhoff C6017-0030 Ultra Compact Industrial PCs – Technical Specifications
| Specification | Value |
|---|---|
| Device type | Ultra-compact control cabinet PC |
| Housing | aluminum zinc die-cast housing |
| Installation | mounting sheet at the rear wall |
| Slots for hard disk/flash | 1 slot for M.2 SSD |
| Cooling | passive with single side cooling plate |
| Free space for air circulation | 5 cm (2") on top and bottom of the PC required |
| Protection rating | IP20 |
| Operating temperature | 0…50°C |
| Dimensions (W x H x D) | 82 x 82 x 66 mm (3.2" x 3.2" x 2.6"), without mounting plate |
| Processor | Intel Atom®x6214RE, 1.4 GHz, 2 cores (TC3: 40) |
| Motherboard | compact motherboard for Intel Atom®x6 |
| Memory | 4 GB DDR4 RAM |
| Graphic | integrated in the processor |
| Ethernet | 2 x 100/1000/2500BASE-T on-board |
| Hard disks/flash | 40 GB M.2 SSD |
| Interfaces | 2 x USB 3.1 Gen. 2, 1 x DisplayPort |
| Power supply | 24 V DC |
The Beckhoff C6017-0030 Ultra Compact Industrial PC is engineered with a robust aluminum zinc die-cast housing, ensuring long-term durability in demanding factory conditions. Compact in size at 82 × 82 × 66 mm, it supports efficient passive cooling with a single-side plate, requiring minimal clearance for air circulation. With a protection rating of IP20 and an operating range of 0 to 50°C, it provides stable performance in protected industrial environments.
At its core, the C6017-0030 Ultra Compact Industrial PC is powered by an Intel Atom® x6214RE dual-core processor (1.4 GHz) with 4 GB DDR4 RAM, making it capable of handling automation and control tasks efficiently. Data storage is supported with a 40 GB M.2 SSD, while connectivity options include 2 × USB 3.1 Gen. 2, 1 × DisplayPort, and dual Ethernet interfaces supporting up to 2.5 Gbit/s. Powered by a stable 24 V DC supply, the device integrates seamlessly into control cabinets, enabling flexible use in industrial networks.
The Beckhoff C6017-0030 Ultra Compact Industrial PCs are widely adopted across machine building, packaging, energy, and process automation sectors. Their compact footprint allows easy installation in decentralized applications and retrofits where space is limited. Engineers value this model for its reliability, energy efficiency, and long service life, while system integrators trust it for easy integration and reduced downtime. With Beckhoff’s commitment to innovation, the Ultra Compact Industrial PCs range continues to deliver trusted performance and scalability for future-ready automation systems.
