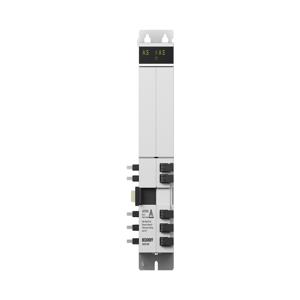

AX8206-0000-0000 - Beckhoff Servo Drives
AX8206-0000-0000 Beckhoff Servo Drives Technical Specifications
| Brand | Beckhoff |
| Product Type | Servo Drives |
| Product | AX8206-0000-0000 |
AX8206-0000-0000 Beckhoff Servo Drives Technical Specifications
| Specification | Value |
|---|---|
| DC link voltage | max. 848 V DC |
| System bus | EtherCAT |
| Drive profile | CiA402 according to IEC 61800-7-201 (CoE) |
| Ambient temperature (operation) | 0..+40ยฐC, up to +55ยฐC with power reduction (see documentation) |
| Approvals/markings | CE, cULus |
| Housing - Protection rating | IP20 |
| Function | axis module |
| Rated output current (channel) | 6 A |
| Peak output current (channel) | 20 A |
| Feedback | OCT, EnDatรยฎร 3 |
| Housing - Width | 60 mm |
| Dimensions - Height without connectors | 230 mm |
| Dimensions - Depth without connectors | 192 mm |
