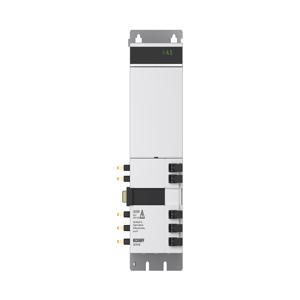

AX8128-0220-0000 - Beckhoff Servo Drives
AX8128-0220-0000 Beckhoff Servo Drives Technical Specifications
| Brand | Beckhoff |
| Product Type | Servo Drives |
| Product | AX8128-0220-0000 |
AX8128-0220-0000 Beckhoff Servo Drives Technical Specifications
| Specification | Value |
|---|---|
| DC link voltage | max. 848 V DC |
| System bus | EtherCAT |
| Drive profile | CiA402 according to IEC 61800-7-201 (CoE) |
| Realization STO | by local TwinSAFE Logic, via FSoE or hard-wired via safe inputs |
| Safe stop functions | Safe Torque Off (STO), Safe Operating Stop (SOS), Safe Stop 1 (SS1), Safe Stop 2 (SS2) |
| Safety standard | EN ISO 13849-1:2015 (Cat 4, PL e), EN 61508:2010 (SILÂ 3) and EN 62061:2005 + A1:2013/A2:2015 (SIL CL3) |
| Ambient temperature (operation) | 0..+40°C, up to +55°C with power reduction (see documentation) |
| Approvals/markings | CE, cULus (in preparation) |
| Housing - Protection rating | IP20 |
| Safe acceleration functions | Safe Maximum Acceleration (SMA), Safe Acceleration Range (SAR) |
| Safe braking functions | Safe Brake Control (SBC), Safe Brake Test (SBT) |
| Safe direction functions | Safe Direction positive (SDIp), Safe Direction negative (SDIn) |
| Safe speed functions | Safely Limited Speed (SLS), Safe Speed Range (SSR), Safe Speed Monitor (SSM), Safe Maximum Speed (SMS) |
| Safe position functions | Safely Limited Position (SLP), Safe CAM (SCA), Safely Limited Increment (SLI) |
| Function | axis module with TwinSAFE Logic and multi-feedback interface |
| Rated output current (channel) | 28 A |
| Peak output current (channel) | 50 A |
| Feedback | OCT, EnDat® 3, BiSS®C, EnDat®2.2/22, DIFF RS422, TTL, SinCos 1 VPP |
| Housing - Width | 90 mm |
