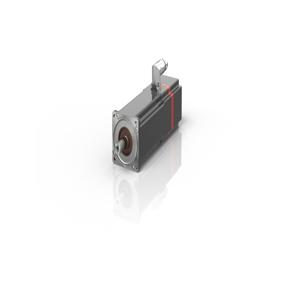

AMP8043-KX1Z - Beckhoff Servo Drives
AMP8043-KX1Z Beckhoff Servo Drives Technical Specifications
| Brand | Beckhoff |
| Product Type | Servo Drives |
| Product | AMP8043-KX1Z |
AMP8043-KX1Z Beckhoff Servo Drives Technical Specifications
| Specification | Value |
|---|---|
| Motor type | permanent magnet-excited three-phase synchronous motor with integrated servo drive |
| DC link voltage | 0...848 V DC |
| Standstill torque | 4.70 Nm |
| Rated speed | 7000 min-1 |
| Rated power | 0.37 kW |
| Rotor moment of inertia | 2.87Γ kgcmΓΒ² |
| Motor feedback | single-turn absolute encoder |
| System bus | EtherCAT |
| Drive profile | CiA402 according to IEC 61800-7-201 (CoE) |
| Connection technology | ENP B23 plug |
| Realization STO | by local TwinSAFE Logic or by FSoE |
| Safe stop functions | Safe Torque Off (STO), Safe Stop 1 (SS1) |
| Safety standard | EN ISO 13849-1:2015 (Cat 4, PL e), EN 61508:2010 (SILΓ 3) and EN 62061:2005 + A1:2013/A2:2015 (SIL CL3) |
| Ambient temperature (operation) | 5...40Β°C |
| Approvals/markings | CE, cULus, TΓΒV SΓΒΌd |
| Housing - Protection rating | IP54, IP65 (shaft seal) |
| Housing - Design form | flange-mounted according to IM B5, IM V1, IM V3 |
| Housing - Material | aluminum |
| Housing - Coating/surface | dark gray powder coating, similar to RAL7016 |
| Dimensions - k (without brake) | 285.5Γ mm |
| Dimensions - k (with brake) | 333.0Γ mm |
