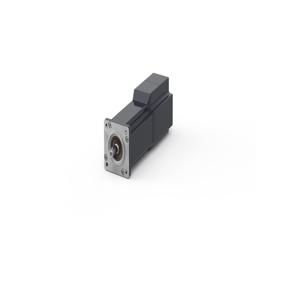

AMI8121-ABCC-WFYZ - Beckhoff Servo Drives
AMI8121-ABCC-WFYZ Beckhoff Servo Drives Technical Specifications
| Brand | Beckhoff |
| Product Type | Servo Drives |
| Product | AMI8121-ABCC-WFYZ |
AMI8121-ABCC-WFYZ Beckhoff Servo Drives Technical Specifications
| Specification | Value |
|---|---|
| Standstill torque | 0.48 Nm |
| Rated torque | 0.45 Nm |
| Peak torque | 1.89Â Nm |
| Rated speed | 3000 min-1 |
| Rated power | 0.141 kW |
| Rotor moment of inertia | 0.139 kgcm² |
| System bus | EtherCAT |
| Drive profile | MDP profile, DS402 profile |
| Connection technology | M12, l-coded/M8, screw type, 3-pin, a-coded/M8, screw type, 4-pin, a-coded |
| Realization STO | by local TwinSAFE Logic or by FSoE |
| Safe stop functions | Safe Torque Off (STO), Safe Stop 1 (SS1) |
| Safety standard | EN 61508-1-3:2010 (up to SIL 3), IEC 62061:2021 (maximum SIL 3), EN ISO 13849-1:2015 (up to Cat 4, PL e) and EN 61800-5-2:2017 |
| Ambient temperature (operation) | 5...40°C |
| Approvals/markings | CE, cURus |
| Housing - Protection rating | IP54, IP65 (shaft seal) |
| Housing - Design form | flange-mounted according to IM B5, IM V1, IM V3 |
| Housing - Material | aluminum |
| Housing - Coating/surface | dark gray powder coating, similar to RAL7016 |
| Dimensions - k (without brake) | 155 mm |
| Dimensions - k (with brake) | 189.5Â mm |
| Nominal voltage | 24â¦48 V DC |
