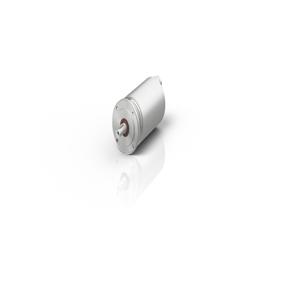

AM8833-WDYZ - Beckhoff Rotary Servomotors
Technical Specifications of Beckhoff Rotary Servomotors AM8833-WDYZ:
| Brand | Beckhoff |
| Product Type | Rotary Servomotors |
| Product | AM8833-WDYZ |
AM8833-WDYZ Beckhoff Rotary Servomotors Technical Specifications
| Specification | Value |
|---|
| Motor type | permanent magnet-excited three-phase synchronous motor |
| Nominal voltage | 100...480 V AC |
| Standstill torque | 1.85 Nm |
| Rated torque | 1.35 Nm |
| Peak torque | 17.00 Nm |
| Rated speed | 3000 min-1 |
| Rated power | 0.42 kW |
| Standstill current | 1.25 A |
| Peak current | 12.90 A |
| Torque constant | 1.48 Nm/A |
| Rotor moment of inertia | 1.231 kgcm² |
| Motor feedback | resolver, single-turn absolute encoderOCT, 18Â bit, single-turn or multi-turn absolute encoder, electronic nameplateOCT, 24Â bit, SIL 2-capable, single-turn or multi-turn absolute encoder, electronic nameplateOCT, 24Â bit, SIL 2-capable, single-turn or multi-turn absolute encoder, electronic nameplate, B/SSD |
| Cooling | convection |
| Connection technology | M23 speedtec®socket or direct connection for AX5000/AX8000 |
| Ambient temperature (operation) | 5..40°C |
| Approvals/markings | CE, cURus |
| Housing - Protection rating | IP69K |
| Housing - Design form | flange-mounted according to IM B5, IM V1, IM V3 |
| Housing - Material | stainless steel |
| Housing - Coating/surface | stainless steel |
| Dimensions - a | 60 j6 |
| Dimensions - b | 14 k6 |
| Dimensions - d | 30 mm |
| Dimensions - l | 75 mm |
| Dimensions - r | 89 mm |
| Dimensions - k (without brake) | 185 mm |
| Dimensions - k (with brake) | 223 mm |
