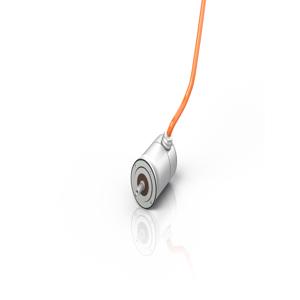

AM8732-WEYZ - Beckhoff Rotary Servomotors
Technical Specifications of Beckhoff Rotary Servomotors AM8732-WEYZ:
| Brand | Beckhoff |
| Product Type | Rotary Servomotors |
| Product | AM8732-WEYZ |
AM8732-WEYZ Beckhoff Rotary Servomotors Technical Specifications
| Specification | Value |
|---|
| Motor type | permanent magnet-excited three-phase synchronous motor |
| Nominal voltage | 100...480 V AC |
| Standstill torque | 2.37 Nm |
| Rated torque | 2.20 Nm |
| Peak torque | 11.66 Nm |
| Rated speed | 6000 min-1 |
| Rated power | 1.38 kW |
| Standstill current | 2.95 A |
| Peak current | 17.20Â A |
| Torque constant | 0.80Â Nm/A |
| Rotor moment of inertia | 0.847 kgcm² |
| Motor feedback | resolver, single-turn absolute encoderOCT, 24Â bit, SIL 2-capable, single-turn or multi-turn absolute encoder, electronic nameplateOCT, 24Â bit, SIL 2-capable, single-turn or multi-turn absolute encoder, electronic nameplate, B/SSD |
| Cooling | convection |
| Connection technology | M23 speedtec®socket or direct connection for AX5000/AX8000 |
| Ambient temperature (operation) | 5..40°C |
| Approvals/markings | CE, cURus in preparation |
| Housing - Protection rating | IP69K not including shaft feedthrough |
| Housing - Design form | flange-mounted according to IM B5, IM V1, IM V3 |
| Housing - Material | aluminum |
| Housing - Coating/surface | anodized |
| Dimensions - a | 60 j6 |
| Dimensions - b | 14 k6 |
| Dimensions - d | 30 mm |
| Dimensions - l | 75 mm |
| Dimensions - r | 89 mm |
| Dimensions - k (without brake) | 160.5 mm |
| Dimensions - k (with brake) | 198.5 mm |
