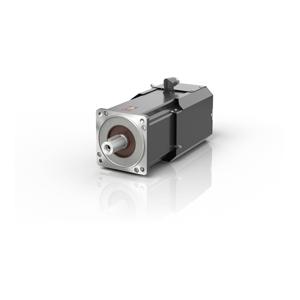

AM8561-WMYZ - Beckhoff Rotary Servomotors
Technical Specifications of Beckhoff Rotary Servomotors AM8561-WMYZ:
| Brand | Beckhoff |
| Product Type | Rotary Servomotors |
| Product | AM8561-WMYZ |
AM8561-WMYZ Beckhoff Rotary Servomotors Technical Specifications
| Specification | Value |
|---|---|
| Motor type | permanent magnet-excited three-phase synchronous motor |
| Nominal voltage | 100...480 V AC |
| Standstill torque | 12.8 Nm |
| Rated torque | 9.00 Nm |
| Peak torque | 37.1 Nm |
| Rated speed | 5000 min-1 |
| Rated power | 4.71 kW |
| Standstill current | 13.1 A |
| Peak current | 45.2 A |
| Torque constant | 0.97 Nm/A |
| Rotor moment of inertia | 48.2 kgcm² |
| Motor feedback | resolver, single-turn absolute encoderHIPERFACE®, multi-turn absolute encoderOCT, 18 bit, single-turn or multi-turn absolute encoder, electronic nameplateOCT, 24 bit, SIL 2-capable, single-turn or multi-turn absolute encoder, electronic nameplateOCT, 24 bit, SIL 2-capable, single-turn or multi-turn absolute encoder, electronic nameplate, B/SSDOCT, EnDat® 3, 19 bit, SIL 3-capable, single-turn or multi-turn absolute encoder, electronic nameplate |
| Cooling | convection |
| Connection technology | M23 speedtec®plug |
| Ambient temperature (operation) | 5..40°C |
| Approvals/markings | CE, cURus |
| Housing - Protection rating | IP54, IP65 (shaft seal) |
| Housing - Design form | flange-mounted according to IM B5, IM V1, IM V3 |
| Housing - Material | aluminum |
| Housing - Coating/surface | dark gray powder coating, similar to RAL7016 |
| Dimensions - a | 130 j6 |
| Dimensions - b | 32 k6 |
| Dimensions - d | 58 mm |
| Dimensions - l | 165 mm |
| Dimensions - r | 142 mm |
| Dimensions - k (without brake) | 228 mm |
| Dimensions - k (with brake) | 268 mm |
