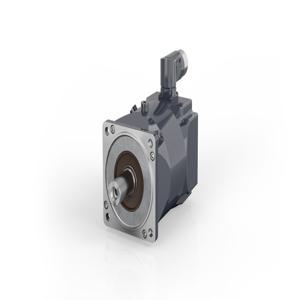

AM8363-WQYZ - Beckhoff Rotary Servomotors
Technical Specifications of Beckhoff Rotary Servomotors AM8363-WQYZ:
| Brand | Beckhoff |
| Product Type | Rotary Servomotors |
| Product | AM8363-WQYZ |
AM8363-WQYZ Beckhoff Rotary Servomotors Technical Specifications
| Specification | Value |
|---|
| Motor type | permanent magnet-excited three-phase synchronous motor |
| Nominal voltage | 100...480 V AC |
| Standstill torque | 74.7 Nm |
| Rated torque | 69.1 Nm |
| Peak torque | 111 Nm |
| Rated speed | 1200 min-1 |
| Rated power | 8.68 kW |
| Standstill current | 21.7Â A |
| Peak current | 38.90 A |
| Torque constant | 3.44Â Nm/A |
| Rotor moment of inertia | 29.5 kgcm² |
| Motor feedback | resolver, single-turn absolute encoderOCT, 24Â bit, SIL 2-capable, single-turn or multi-turn absolute encoder, electronic nameplateOCT, 24Â bit, SIL 2-capable, single-turn or multi-turn absolute encoder, electronic nameplate, B/SSD |
| Cooling | water cooling |
| Connection technology | M40 speedtec®plug |
| Ambient temperature (operation) | 5..40°C |
| Approvals/markings | CE, cURus in preparation |
| Housing - Protection rating | IP54, IP65 (shaft seal) |
| Housing - Design form | flange-mounted according to IM B5, IM V1, IM V3 |
| Housing - Material | aluminum |
| Housing - Coating/surface | acrylic powder-coated, dark gray, similar to RAL7016 |
| Dimensions - k (without brake) | 256 mm |
| Dimensions - k (with brake) | 315 mm |
