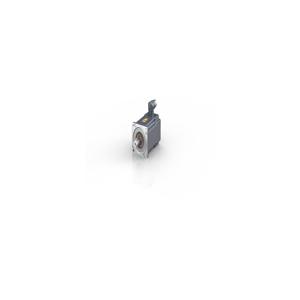

AM8141-WNYZ - Beckhoff Rotary Servomotors
Technical Specifications of Beckhoff Rotary Servomotors AM8141-WNYZ:
| Brand | Beckhoff |
| Product Type | Rotary Servomotors |
| Product | AM8141-WNYZ |
AM8141-WNYZ Beckhoff Rotary Servomotors Technical Specifications
| Specification | Value |
|---|---|
| Motor type | permanent magnet-excited three-phase synchronous motor |
| Nominal voltage | 24..48 V DC |
| Standstill torque | 2.40 Nm |
| Rated torque | 2.40 Nm |
| Peak torque | 9.13 Nm |
| Rated speed | 2500 min-1 |
| Rated power | 0.62 kW |
| Standstill current | 16.0 A |
| Peak current | 36.2ร A |
| Torque constant | 0.3 Nm/A |
| Rotor moment of inertia | 1.08ร kgcmรยฒ |
| Motor feedback | OCT, 24ร bit, SIL 2-capable, single-turn or multi-turn absolute encoder, electronic nameplateOCT, EnDatรยฎร 3, 19ร bit, SIL 3-capable, single-turn or multi-turn absolute encoder, electronic nameplate |
| Cooling | convection |
| Connection technology | M23 speedtecรยฎplug |
| Ambient temperature (operation) | 5..40ยฐC |
| Approvals/markings | CE, cURus |
| Housing - Protection rating | IP54, IP65 (shaft seal) |
| Housing - Design form | flange-mounted according to IM B5, IM V1, IM V3 |
| Housing - Material | aluminum |
| Housing - Coating/surface | dark gray powder coating, similar to RAL7016 |
| Dimensions - a | 80 j6 |
| Dimensions - b | 19 k6 |
| Dimensions - d | 40 mm |
| Dimensions - l | 100 mm |
| Dimensions - r | 87 mm |
| Dimensions - k (without brake) | 132 mm |
| Dimensions - k (with brake) | 179.5 mm |
