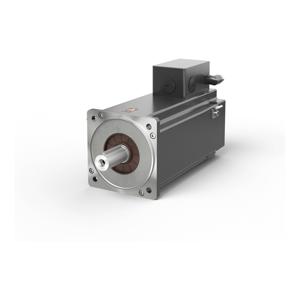

AM8074-WTY1 - Beckhoff Rotary Servomotors
Technical Specifications of Beckhoff Rotary Servomotors AM8074-WTY1:
| Brand | Beckhoff |
| Product Type | Rotary Servomotors |
| Product | AM8074-WTY1 |
AM8074-WTY1 Beckhoff Rotary Servomotors Technical Specifications
| Specification | Value |
|---|
| Motor type | permanent magnet-excited three-phase synchronous motor |
| Nominal voltage | 100...480 V AC |
| Standstill torque | 92 Nm |
| Rated torque | 19.1 Nm |
| Peak torque | 355 Nm |
| Rated speed | 2500 min-1 |
| Rated power | 5.0 kW |
| Standstill current | 49.8 A |
| Peak current | 180 A |
| Torque constant | 1.85 Nm/A |
| Rotor moment of inertia | 180 kgcm² |
| Motor feedback | resolver, single-turn absolute encoderHIPERFACE®, multi-turn absolute encoder |
| Cooling | convection |
| Connection technology | terminal box |
| Ambient temperature (operation) | 5..40°C |
| Approvals/markings | CE, cURus |
| Housing - Protection rating | IP54, IP65 (shaft seal) |
| Housing - Design form | flange-mounted according to IM B5, IM V1, IM V3 |
| Housing - Material | aluminum |
| Housing - Coating/surface | dark gray powder coating, similar to RAL7016 |
| Dimensions - a | 180 j6 |
| Dimensions - b | 38 k6 |
| Dimensions - d | 80 mm |
| Dimensions - l | 215 mm |
| Dimensions - r | 194 mm |
| Dimensions - k (without brake) | 398.5 mm |
| Dimensions - k (with brake) | â |
