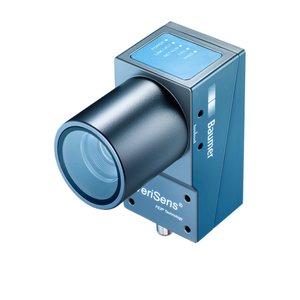

Baumer VS XC800M20X00IP Vision Sensor
Technical Specifications of Baumer Vision Sensors VS XC800M20X00IP:
| Sensor type | 1/1.8″ CCD, monochrome |
| Power consumption | Max. 42 W (with I/O and lighting) |
| Material | housing: aluminum, cover glass XC tube: PMMA |
Baumer VS XC800M20X00IP Vision Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Resolution | 1600 × 1200 px |
| Sensor type | 1/1.8″ CCD, monochrome |
| Illumination | external, available as accessory |
| High-resolution mode | max. 21 inspections per second |
| Number of jobs (products) | ≤ 255 |
| Features per job | 32 |
| Signal processing | Baumer FEX® 4.0 |
| Defect image memory | 4 |
| Lens | C-mount |
| Nominal voltage power supply | 24 V ±25 % |
| Nominal voltage power supply (add-on) | Class 2 according to NEC / protection class III |
| Nominal voltage power supply (info) | The device is intended for supply from an isolated limited power source according to UL61010-1, 3rd ed cl. 9.4 or a limited energy source according to UL60950-1 or Class 2 according to NEC. |
| Power consumption | Max. 42 W (with I/O and lighting) |
| Inputs | 8 … 30 V (polarity protected) |
| Digital inputs | 5 inputs, trigger, job selection, external teach-in, encoders (CH-A, CH-B) 500 kHz |
| Outputs | PNP Ipeak = 100 mA and Ieff = 50 mA (short-circuit proof) |
| Digital outputs | 5 outputs, Pass / Fail, Flash Sync, Alarm, Camera Ready, Output Enable |
| Initial setup | Ethernet (10BASE-T / 100BASE-TX) |
| Process interface | PROFINET (CC-A), EtherNet/IP™, TCP/UDP (Ethernet) |
| Visualization | configurable web interface with MultiViewer function |
| Width | 53 mm (without lens/tube) |
| Height | 99.5 mm (without lens/tube) |
| Depth | 49.8 mm (without lens/tube) |
| Weight | ≤ 300 g (without lens/tube) |
| Material | housing: aluminum, cover glass XC tube: PMMA |
| Storage temperature | -20 … +70 °C |
| Humidity | 0 … 90 % (non-condensing) |
| Protection class | IP 67 (with tube) |
| Barcode | 2/5 Industrial, 2/5 Interleaved, Codabar, Code 39, Code 93, Code 128, PharmaCode, EAN 8, EAN 13, UPC-A, UPC-E, GS1 DataBar, GS1 128 |
| Matrix code | DataMatrix (ECC 200), GS1-DataMatrix, QR-Code, PDF417 |
| Flash memory size | 2000 Mbit Flash S34ML02G100BHI0000 |
| High-speed mode (limited resolution) | max. 35 inspections per second |
