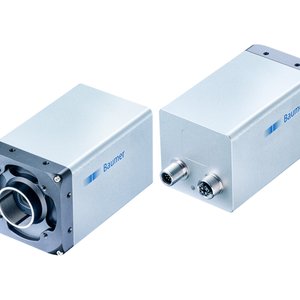

Home Brands Baumer Industrial Camera VLXT-90M.I.JP Baumer VLXT-90M.I.JP Industrial Camera The Baumer VLXT-90M.I.JP Industrial Camera offers a 70.4 dB dynamic range, Global shutter , C-mount , and Sony IMX255 Gen2 connection. Manufactured by Baumer under the Baumer Industrial Camera category, this model belongs to the CX Series.
Brand Baumer Product Type Industrial Camera Model Number VLXT-90M.I.JP
Baumer VLXT-90M.I.JP Industrial Camera – Technical Specifications Specification Value Sensor Sony IMX255 Gen2 Mono/Color Mono Sensor type 1″ CMOS Shutter type Global shutter Resolution 4096 × 2160 px Pixel size 3.45 × 3.45 µm Exposure time 0.001 … 60000 ms Dark noise 2.11 e- Saturation capacity 9165 e- Dynamic range 70.4 dB Signal-to-noise ratio 39.6 dB Image formats, interface frame rate max. Full Frame, 4096 × 2160 px, max. 95 fps, Binning 2×2, 2048 × 1080 px, max. 184 fps, Binning 2×1, 2048 × 2160 px, max. 95 fps, Binning 1×2, 4096 × 1080 px, max. 95 fps Image formats, aquisition frame rate max. (Burst Mode) Full Frame, 4096 × 2160 px, max. 95 fps Pixel formats Mono8, Mono10, Mono12, Mono12 Packed Analog controls Gain (0 … 48 dB), Offset (0 … 255 LSB 12 Bit) Color models Mono Internal image buffer 1024 MB, 117 images (Trigger Mode), 1 image (Free Running Mode) Process interface M12 / 12 pins a-coded (SACC-CI-M12MS-12CON-L180) Power supply via M12/12 pins a-coded Lens mount C-mount Width 60 mm Height 60 mm Depth 99.7 mm Weight ≤ 485 g Material aluminum Voltage supply range +Vs 19.2 … 28.8 V DC (external power supply) Power consumption Approx. 10.5 W @ 24 VDC and 95 fps Flash memory size 128 kB Operating temperature 0 … +60 ° @ T = measurement point Humidity 10 … 90 % (non-condensing) Protection class IP 40, IP 54 (with mounted tube and cable), IP 65 (with mounted tube and cable), IP 67 (with mounted tube and cable)
