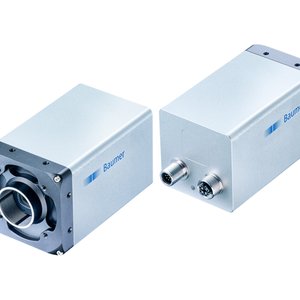

Home Brands Baumer Industrial Camera VLXT-31M.I Baumer VLXT-31M.I Industrial Camera The Baumer VLXT-31M.I Industrial Camera offers a 70.6 dB dynamic range, Global shutter , C-mount , and Sony IMX252 Gen2 connection. Manufactured by Baumer under the Baumer Industrial Camera category, this model belongs to the CX Series.
Brand Baumer Product Type Industrial Camera Model Number VLXT-31M.I
Baumer VLXT-31M.I Industrial Camera – Technical Specifications Specification Value Sensor Sony IMX252 Gen2 Mono/Color Mono Sensor type 1/1.8″ CMOS Shutter type Global shutter Resolution 2048 × 1536 px Pixel size 3.45 × 3.45 µm Exposure time 0.001 … 60000 ms Dark noise 2.09 e- Saturation capacity 9320 e- Dynamic range 70.6 dB Signal-to-noise ratio 39.7 dB Image formats, interface frame rate max. Full Frame, 2048 × 1536 px, max. 217 fps, Binning 2×2, 1024 × 768 px, max. 217 fps, Binning 2×1, 1024 × 1536 px, max. 217 fps, Binning 1×2, 2048 × 768 px, max. 217 fps Image formats, aquisition frame rate max. (Burst Mode) Full Frame, 2048 × 1536 px, max. 217 fps Pixel formats Mono8, Mono10, Mono12, Mono12 Packed Analog controls Gain (0 … 48 dB), Offset (0 … 255 LSB 12 Bit) Color models Mono Internal image buffer 1024 MB, 307 images (Trigger Mode), 1 image (Free Running Mode) Process interface M12 / 12 pins a-coded (SACC-CI-M12MS-12CON-L180) Power supply via M12/12 pins a-coded Lens mount C-mount Width 60 mm Height 60 mm Depth 99.7 mm Weight ≤ 485 g Material aluminum Voltage supply range +Vs 19.2 … 28.8 V DC (external power supply) Power consumption Approx. 10.1 W @ 24 VDC and 217 fps Flash memory size 128 kB Operating temperature 0 … +65 ° @ T = measurement point Humidity 10 … 90 % (non-condensing) Protection class IP 40, IP 54 (with mounted tube and cable), IP 65 (with mounted tube and cable), IP 67 (with mounted tube and cable)
