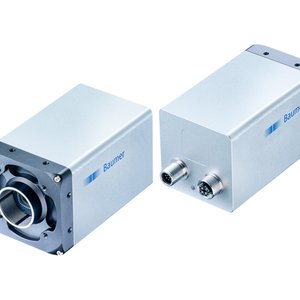

Baumer VLXT-31M.FO Industrial Camera
The Baumer VLXT-31M.FO Industrial Camera offers a 70.7 dB dynamic range, Global shutter, C-mount, and Sony IMX252 Gen2 connection. Manufactured by Baumer under the Baumer Industrial Camera category, this model belongs to the CX Series.
| Brand | Baumer |
| Product Type | Industrial Camera |
| Model Number | VLXT-31M.FO |
Baumer VLXT-31M.FO Industrial Camera – Technical Specifications
| Specification | Value |
|---|---|
| Sensor | Sony IMX252 Gen2 |
| Mono/Color | Mono |
| Sensor type | 1/1.8″ CMOS |
| Shutter type | Global shutter |
| Resolution | 2048 × 1536 px |
| Pixel size | 3.45 × 3.45 µm |
| Exposure time | 0.001 … 60000 ms |
| Dark noise | 2.06 e- |
| Saturation capacity | 9354 e- |
| Dynamic range | 70.7 dB |
| Signal-to-noise ratio | 39.7 dB |
| Quantum efficiency | 65.5 % @ 536 nm |
| Image formats, interface frame rate max. | Full Frame, 2048 × 1536 px, max. 217 fps, Binning 2×2, 1024 × 768 px, max. 217 fps, Binning 2×1, 1024 × 1536 px, max. 217 fps, Binning 1×2, 2048 × 768 px, max. 217 fps |
| Image formats, aquisition frame rate max. (Burst Mode) | Full Frame, 2048 × 1536 px, max. 217 fps |
| Pixel formats | Mono8, Mono10, Mono12, Mono12 Packed |
| Analog controls | Gain (0 … 48 dB), Offset (0 … 255 LSB 12 Bit) |
| Color models | Mono |
| Basic Functions | Exposure, Gain / Color Gain, Trigger / Exposure Active (Flash), Binning 2x2, Partial Scan, Offset, Free Running Mode (Live Image), Multi ROI |
| Auto Functions | Exposure Auto, Gain Auto |
| Image Pre-processing | Image Flipping (X/Y), LUT / Gamma, Shading Correction, Edge Sharpening, Noise Reduction |
| Acquisition / Interface | Burst Mode, Adjustable Framerate, Short Exposure Time Enable, Device Link Throughput Limit, Internal Image Buffer |
| Synchronization | free running, trigger |
| Trigger sources | Hardware, Software, ActionCommand |
| Trigger delay | 0 … 2 s, tracking and buffering of up to 256 trigger signals |
| Process Synchronization | Events, Timer, Trigger Delay, Debouncer, Counter, Sequencer, Trigger via Action CMD (GigE), Action CMD Request ID, Trigger ID inside Chunk, Additional Output Modes (e.g. Trigger Ready), PWM (PWM Duration / PWM Duty Cycle), Selectable Output format (e.g. Tri State, Push Pull), Chunk data inside transferred image, Encoder support via Counter End trigger source, 4 power outputs with up to 120 W (max. 48 V / 2.5 A) |
| Additional Functions | User Set, Integrated temperature sensor, Readable additional information (e.g. sensor information), Save Custom Data |
| Internal image buffer | 1024 MB, 330 images (Trigger Mode), 1 image (Free Running Mode) |
| Data interface | 10 Gigabit Ethernet, Transfer rate 10000 Mbits/sec, Connector: SFP+ cage |
| Process interface | M12 / 12 pins a-coded (SACC-CI-M12MS-12CON-L180) |
| Power supply | via M12/12 pins a-coded |
| Lens mount | C-mount |
| Width | 60 mm |
| Height | 60 mm |
| Depth | 79.6 mm |
| Weight | ≤ 415 g |
| Material | aluminum |
| Voltage supply range +Vs | 12 … 24 V DC (external power supply) |
| Power consumption | Approx. 6.6 W @ 12 VDC and 119 fps |
| Flash memory size | 128 kB |
| Operating temperature | 0 … +65 ° @ T = measurement point |
| Humidity | 10 … 90 % (non-condensing) |
| Protection class | IP 40, IP 54 (with mounted tube and cable), IP 65 (with mounted tube and cable), IP 67 (with mounted tube and cable) |
| Lines | 2 input lines, 4 power output lines with pulse width modulation (PWM) (max. 48 V / max. 2,5 A), RS232 |
