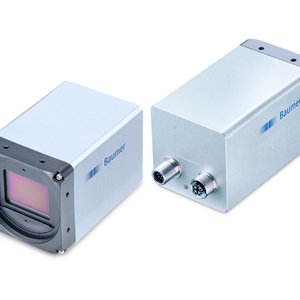

Baumer VLXN 490M.I.JP Industrial Camera
The Baumer VLXN 490M.I.JP Industrial Camera offers a 65.6 dB dynamic range, Global shutter, M58-mount (F-mount, M42, C-mount via adapter), and Gpixel GMAX3249 connection. Manufactured by Baumer under the Baumer Industrial Camera category, this model belongs to the CX Series.
| Brand | Baumer |
| Product Type | Industrial Camera |
| Model Number | VLXN 490M.I.JP |
Baumer VLXN 490M.I.JP Industrial Camera – Technical Specifications
| Specification | Value |
|---|---|
| Sensor | Gpixel GMAX3249 |
| Mono/Color | Mono |
| Sensor type | 2″ CMOS |
| Shutter type | Global shutter |
| Resolution | 7008 × 7000 px |
| Pixel size | 3.2 × 3.2 µm |
| Exposure time | 0.02 … 60000 ms |
| Dark noise | 4.51 e- |
| Saturation capacity | 9665 e- |
| Dynamic range | 65.6 dB |
| Signal-to-noise ratio | 39.9 dB |
| Quantum efficiency | 61.1 % @ 536 nm, 60.2 % @ 535 nm |
| Image formats, interface frame rate max. | Binning 2×2, 4672 × 3500 px, max. 11 fps, Binning 2×1, 4672 × 7000 px, max. 11 fps, Binning 1×2, 9344 × 3500 px, max. 11 fps, Full Frame, 9344 × 7000 px, max. 9 fps |
| Image formats, aquisition frame rate max. (Burst Mode) | Full Frame, 9344 × 7000 px, max. 11 fps |
| Pixel formats | Mono8, Mono10, Mono12, Mono12 Packed |
| Analog controls | Gain (0 … 44 dB), Offset (-256 … 255 LSB 12 Bit) |
| Color models | Mono |
| Basic Functions | Exposure, Gain / Color Gain, Trigger / Exposure Active (Flash), Binning 2x2, Partial Scan, Offset, Free Running Mode (Live Image), Multi ROI |
| Auto Functions | Exposure Auto, Gain Auto |
| Image Pre-processing | Image Flipping (X/Y), LUT / Gamma, Shading Correction, Edge Sharpening, Noise Reduction, JPEG Image Compression |
| Acquisition / Interface | Burst Mode, Adjustable Framerate, Short Exposure Time Enable, Device Link Throughput Limit, Internal Image Buffer |
| Synchronization | free running, trigger |
| Trigger sources | Hardware, Software, ActionCommand |
| Trigger delay | 0 … 2 s, tracking and buffering of up to 256 trigger signals |
| Process Synchronization | Events, Timer, Trigger Delay, Debouncer, Counter, Sequencer, Trigger via Action CMD (GigE), Action CMD Request ID, Trigger ID inside Chunk, Additional Output Modes (e.g. Trigger Ready), PWM (PWM Duration / PWM Duty Cycle), Selectable Output format (e.g. Tri State, Push Pull), Chunk data inside transferred image, Encoder support via Counter End trigger source, 4 power outputs with up to 120 W (max. 48 V / 2.5 A) |
| Additional Functions | User Set, Integrated temperature sensor, Readable additional information (e.g. sensor information), Save Custom Data |
| Internal image buffer | 1024 MB, 15 images (Trigger Mode), 1 image (Free Running Mode) |
| Data interface | 5 Gigabit Ethernet, Transfer rate 5000 Mbits/sec, 2.5 Gigabit Ethernet, Transfer rate 2500 Mbits/sec, Gigabit Ethernet, Transfer rate 1000 Mbits/sec, connector: SACC-CI-M12FS-8CON-L180-10G |
| Process interface | M12 / 12 pins a-coded (SACC-CI-M12MS-12CON-L180) |
| Power supply | via M12/12 pins a-coded |
| Lens mount | M58-mount (F-mount, M42, C-mount via adapter) |
| Width | 60 mm |
| Height | 60 mm |
| Depth | 103.8 mm |
| Weight | ≤ 485 g |
| Material | aluminum |
| Voltage supply range +Vs | 19.2 … 28.8 V DC (external power supply) |
| Power consumption | Approx. 10.1 W @ 24 VDC and 9 fps |
| Flash memory size | 128 kB |
| Operating temperature | -30 … +70 °C @ T = measurement point |
| Humidity | 10 … 90 % (non-condensing) |
| Protection class | IP 40 (with mounted lens and cable) |
| Lines | 2 input lines, 4 power output lines with pulse width modulation (PWM) (max. 48 V / max. 2,5 A), RS232 |
