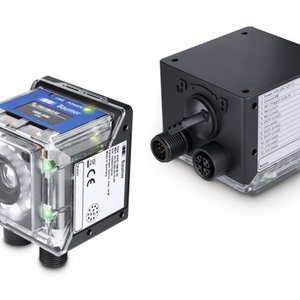

Home Brands Baumer Industrial Camera VIXG-10M.W.16 Baumer VIXG-10M.W.16 Industrial Camera The Baumer VIXG-10M.W.16 Industrial Camera offers a Global shutter , onsemi AR0144CS connection. Manufactured by Baumer under the Baumer Industrial Camera category, this model belongs to the CX Series.
Brand Baumer Product Type Industrial Camera Model Number VIXG-10M.W.16
Baumer VIXG-10M.W.16 Industrial Camera – Technical Specifications Specification Value Sensor onsemi AR0144CS Mono/Color Mono Sensor type 1/4″ CMOS Shutter type Global shutter Resolution 1280 × 800 px Pixel size 3.0 × 3.0 µm Exposure time 0.0011 … 5 ms Image formats, interface frame rate max. Full Frame, 1280 × 800 px, max. 50 fps Pixel formats Mono8 Analog controls Gain 8x Color models Mono Process interface M12/12-pin, A-coded, male Power supply via M12/12-pin, A-coded, male Width 50 mm Height 53 mm Depth 50 mm Weight ≤ 350 g Material zinc die casting and polycarbonate cover Voltage supply range +Vs #ERROR! Power consumption Typ. 5.5 W (1 .2 A max. at 24 V) Flash memory size 4 GB Operating temperature 0 … +45 °C Storage temperature -10 … + 60 °C Humidity 0 … +85 % (non-condensing) Protection class IP 67
