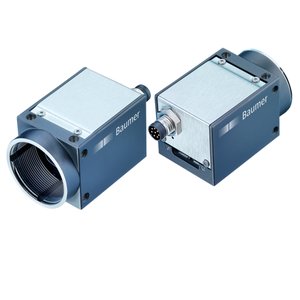

Baumer VCXU.2-57C Industrial Camera
The Baumer VCXU.2-57C Industrial Camera offers a dynamic range, Global shutter, C-mount, and Sony IMX548 Gen4 connection. Manufactured by Baumer under the Baumer Industrial Camera category, this model belongs to the CX Series.
| Brand | Baumer |
| Product Type | Industrial Camera |
| Model Number | VCXU.2-57C |
Baumer VCXU.2-57C Industrial Camera – Technical Specifications
| Specification | Value |
|---|---|
| Sensor | Sony IMX548 Gen4 |
| Mono/Color | Color |
| Sensor type | 1/1.8″ CMOS |
| Shutter type | Global shutter |
| Resolution | 2464 × 2048 px |
| Pixel size | 2.74 × 2.74 µm |
| Exposure time | 0.001 … 60000 ms |
| Image formats, interface frame rate max. | Full Frame, 2464 × 2048 px, max. 75 fps, Binning 2×2, 1232 × 1024 px, max. 75 fps, Binning 2×1, 1232 × 2048 px, max. 75 fps, Binning 1×2, 2464 × 1024 px, max. 75 fps |
| Image formats, aquisition frame rate max. (Burst Mode) | Full Frame, 2464 × 2048 px, max. 75 fps |
| Pixel formats | BayerRG8, BayerRG10, BayerRG12, BayerRG12 Packed, Mono8, Mono10, Mono12, Mono12 Packed, RGB8, BGR8 |
| Analog controls | Gain (0 … 48 dB), Offset (0 … 255 LSB 12 Bit) |
| Color models | Mono, Raw Bayer, RGB, BGR |
| Color processing | Integrated color processor for high quality color calculation |
| Basic Functions | Exposure, Gain / Color Gain, Trigger / Exposure Active (Flash), Binning 2x2, Partial Scan, Offset, Free Running Mode (Live Image) |
| Auto Functions | Exposure Auto, Gain Auto, White Balance Auto, Color Transformation Auto |
| Image Pre-processing | Image Flipping (X/Y), Color Processing (RGB, BGR, Mono), Color Enhancement (with optimized ColorTransformationMatrix), LUT / Gamma |
| Acquisition / Interface | Burst Mode, Adjustable Framerate, Device Link Throughput Limit, Internal Image Buffer |
| Synchronization | free running, trigger |
| Trigger sources | Hardware, Software, ActionCommand |
| Trigger delay | 0 … 2 s, tracking and buffering of up to 256 trigger signals |
| Process Synchronization | Events, Timer, Trigger Delay, Debouncer, Counter, Sequencer, Trigger via Action CMD (GigE), Additional Output Modes (e.g. Trigger Ready), Chunk data inside transferred image, Encoder support via Counter End trigger source |
| Additional Functions | User Set, Integrated temperature sensor, Readable additional information (e.g. sensor information) |
| Internal image buffer | 141 MB, 4 image (Trigger Mode), 1 image (Free Running Mode) |
| Data interface | USB 3.0, Transfer Rate 5000 Mbits/sec, Connector: USB 3.0 Micro B |
| Process interface | M8 / 8 pins (SACC-DSI-M8MS-8CON-M8-L180) |
| Power supply | via USB 3.0 interface |
| Lens mount | C-mount |
| Width | 29 mm |
| Height | 29 mm |
| Depth | 38 mm |
| Weight | ≤ 90 g |
| Material | zinc die casting, baked varnish |
| Power consumption | Approx. 2.7 W @ 75 fps |
| Flash memory size | 128 kB |
| Operating temperature | 0 … +65 ° @ T = measurement point |
| Storage temperature | -20 … +70 °C |
| Humidity | 10 … 90 % (non-condensing) |
| Protection class | IP 40 (with mounted lens and cable) |
| Lines | 1 input line, 1 output line, 2 general purpose lines |
| Output line sources | Off, Exposure Active, Timer1, Readout Active, User0, User1, User2, TriggerReady |
