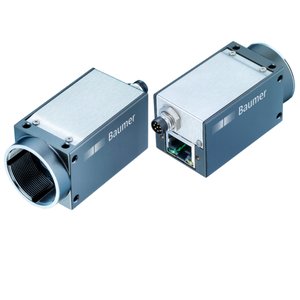

Baumer VCXG-32M.PTP Industrial Camera
The Baumer VCXG-32M.PTP Industrial Camera offers a dynamic range, Global shutter, C-mount, and Sony IMX265 Gen2 connection. Manufactured by Baumer under the Baumer Industrial Camera category, this model belongs to the CX Series.
| Brand | Baumer |
| Product Type | Industrial Camera |
| Model Number | VCXG-32M.PTP |
Baumer VCXG-32M.PTP Industrial Camera β Technical Specifications
| Specification | Value |
|---|---|
| Sensor | Sony IMX265 Gen2 |
| Mono/Color | Mono |
| Sensor type | 1/1.8β³ CMOS |
| Shutter type | Global shutter |
| Resolution | 2048 Γ 1536 px |
| Pixel size | 3.45 Γ 3.45 Β΅m |
| Exposure time | 0.001 β¦ 60000 ms |
| Image formats, interface frame rate max. | Full Frame, 2048 Γ 1536 px, max. 39 fps, Binning 2Γ2, 1024 Γ 768 px, max. 56 fps, Binning 2Γ1, 1024 Γ 1536 px, max. 56 fps, Binning 1Γ2, 2048 Γ 768 px, max. 56 fps |
| Image formats, aquisition frame rate max. (Burst Mode) | Full Frame, 2048 Γ 1536 px, max. 56 fps |
| Pixel formats | Mono8, Mono10, Mono12, Mono12 Packed |
| Analog controls | Gain (0 β¦ 48 dB), Offset (0 β¦ 255 LSB 12 Bit) |
| Color models | Mono |
| Basic Functions | Exposure, Gain, Trigger / Exposure Active (Flash), Binning 2x2, Partial Scan, Offset, Free Running Mode (Live Image) |
| Auto Functions | - |
| Image Pre-processing | Image Flipping (X/Y), LUT / Gamma |
| Acquisition / Interface | Burst Mode, Adjustable Framerate, Short Exposure Time Enable, Device Link Throughput Limit, Internal Image Buffer |
| Synchronization | free running, trigger |
| Trigger sources | Hardware, Software, ActionCommand |
| Trigger delay | 0 β¦ 2 sec, tracking and buffering of up to 256 trigger signals |
| Process Synchronization | Events, Timer, Trigger Delay, Debouncer, Counter, Sequencer, Trigger via Action CMD (GigE), Action CMD Request ID, Trigger ID inside Chunk, Additional Output Modes (e.g. Trigger Ready), Chunk data inside transferred image, Encoder support via Counter End trigger source |
| Additional Functions | User Set, Integrated temperature sensor, Readable additional information (e.g. sensor information) |
| Internal image buffer | 72 MB, 8 images (Trigger Mode), 1 image (Free Running Mode) |
| Data interface | Gigabit Ethernet, Transfer rate 1000 Mbits/sec, Fast Ethernet, Transfer Rate 100 Mbits/sec, Connector: 8P8C Modular Jack (RJ45), screwable type |
| Process interface | M8 / 8 pins (SACC-DSI-M8MS-8CON-M8-L180) |
| Power supply | via M8/8 pins or Power over Ethernet (PoE) |
| Lens mount | C-mount |
| Width | 29 mm |
| Height | 29 mm |
| Depth | 49 mm |
| Weight | β€ 120 g |
| Material | zinc die casting, baked varnish (until 02-2020 nickel-chrome-plated), IP 40 |
| Voltage supply range +Vs | 12 β¦ 24 V DC (external power supply), 36 β¦ 57 V DC (Power over Ethernet) |
| Power consumption | Approx. 2.6 W @ 12 VDC and 39 fps, Approx. 3.1 W @ 48 VDC (PoE) and 39 fps |
| Flash memory size | 128 kB |
| Operating temperature | 0 β¦ +65 Β° @ T = measurement point |
| Storage temperature | -20 β¦ +70 Β°C |
| Humidity | 10 β¦ 90 % (non-condensing) |
| Protection class | IP 40 (with mounted lens and cable) |
| Lines | 1 input line, 1 output line, 2 general purpose lines |
