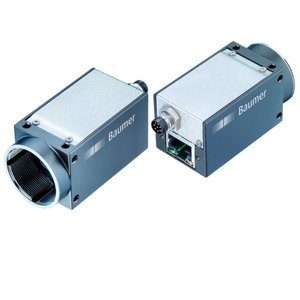

Baumer VCXG.2-57M Industrial Camera
The Baumer VCXG.2-57M Industrial Camera offers a 69.7 dB dynamic range, Global shutter, C-mount, and Sony IMX548 Gen4 connection. Manufactured by Baumer under the Baumer Industrial Camera category, this model belongs to the CX Series.
| Brand | Baumer |
| Product Type | Industrial Camera |
| Model Number | VCXG.2-57M |
Baumer VCXG.2-57M Industrial Camera β Technical Specifications
| Specification | Value |
|---|---|
| Sensor | Sony IMX548 Gen4 |
| Mono/Color | Mono |
| Sensor type | 1/1.8β³ CMOS |
| Shutter type | Global shutter |
| Resolution | 2464 Γ 2048 px |
| Pixel size | 2.74 Γ 2.74 Β΅m |
| Exposure time | 0.001 β¦ 60000 ms |
| Dark noise | 2.42 e- |
| Saturation capacity | 9399 e- |
| Dynamic range | 69.7 dB |
| Signal-to-noise ratio | 39.7 dB |
| Quantum efficiency | 70.2 % @ 536 nm |
| Image formats, interface frame rate max. | Full Frame, 2464 Γ 2048 px, max. 25 fps, Binning 2Γ2, 1232 Γ 1024 px, max. 90 fps, Binning 2Γ1, 1232 Γ 2048 px, max. 25 fps, Binning 1Γ2, 2464 Γ 1024 px, max. 75 fps |
| Image formats, aquisition frame rate max. (Burst Mode) | Full Frame, 2464 Γ 2048 px, max. 90 fps |
| Pixel formats | Mono8, Mono10, Mono12, Mono12 Packed |
| Analog controls | Gain (0 β¦18 dB), Offset (0 β¦ 63 LSB 10 Bit) |
| Color models | Mono |
| Basic Functions | Exposure, Gain, Trigger / Exposure Active (Flash), Binning 2x2, Partial Scan, Offset, Free Running Mode (Live Image) |
| Auto Functions | Exposure Auto, Gain Auto |
| Image Pre-processing | Image Flipping (X/Y), LUT / Gamma |
| Acquisition / Interface | Burst Mode, Adjustable Framerate, Device Link Throughput Limit, Internal Image Buffer |
| Synchronization | free running, trigger |
| Trigger sources | Hardware, Software, ActionCommand |
| Trigger delay | 0 β¦ 2 sec, tracking and buffering of up to 256 trigger signals |
| Process Synchronization | Events, Timer, Trigger Delay, Debouncer, Counter, Sequencer, Trigger via Action CMD (GigE), Additional Output Modes (e.g. Trigger Ready), Chunk data inside transferred image, Encoder support via Counter End trigger source |
| Additional Functions | User Set, Integrated temperature sensor, Readable additional information (e.g. sensor information) |
| Internal image buffer | 185 MB, 8 image (Trigger Mode), 1 image (Free Running Mode) |
| Data interface | Gigabit Ethernet, Transfer rate 1000 Mbits/sec, Fast Ethernet, Transfer Rate 100 Mbits/sec, Connector: 8P8C Modular Jack (RJ45), screwable type |
| Process interface | M8 / 8 pins (SACC-DSI-M8MS-8CON-M8-L180) |
| Power supply | via M8/8 pins or Power over Ethernet (PoE) |
| Lens mount | C-mount |
| Width | 29 mm |
| Height | 29 mm |
| Depth | 49 mm |
| Weight | β€ 120 g |
| Material | zinc die casting, baked varnish |
| Voltage supply range +Vs | 12 β¦ 24 V DC (external power supply), 36 β¦ 57 V DC (Power over Ethernet) |
| Power consumption | Approx. 2.7 W @ 12 VDC and 25 fps, Approx. 3.3 W @ 48 VDC (PoE) and 25 fps |
| Flash memory size | 128 kB |
| Operating temperature | 0 β¦ +65 Β° @ T = measurement point |
| Storage temperature | -20 β¦ +70 Β°C |
| Humidity | 10 β¦ 90 % (non-condensing) |
| Protection class | IP 40 (with mounted lens and cable) |
| Lines | 1 input line, 1 output line, 2 general purpose lines |
| Output line sources | Off, Exposure Active, Timer1, Readout Active, User0, User1, User2, TriggerReady |
