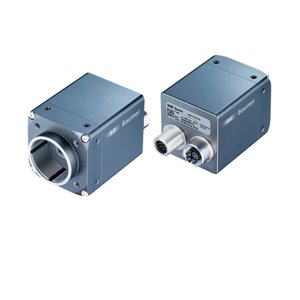

Baumer VCXG-15C.I.PTP Industrial Camera
The Baumer VCXG-15C.I.PTP Industrial Camera offers a dynamic range, Global shutter, C-mount, and Sony IMX273 Gen2 connection. Manufactured by Baumer under the Baumer Industrial Camera category, this model belongs to the CX Series.
| Brand | Baumer |
| Product Type | Industrial Camera |
| Model Number | VCXG-15C.I.PTP |
Baumer VCXG-15C.I.PTP Industrial Camera – Technical Specifications
| Specification | Value |
|---|---|
| Sensor | Sony IMX273 Gen2 |
| Mono/Color | Color |
| Sensor type | 1/2.9″ CMOS |
| Shutter type | Global shutter |
| Resolution | 1440 × 1080 px |
| Pixel size | 3.45 × 3.45 µm |
| Exposure time | 0.001 … 60000 ms |
| Image formats, interface frame rate max. | Full Frame, 1440 × 1080 px, max. 79 fps, Binning 2×2, 720 × 540 px, max. 120 fps, Binning 2×1, 720 × 1080 px, max. 120 fps, Binning 1×2, 720 × 540 px, max. 120 fps |
| Image formats, aquisition frame rate max. (Burst Mode) | Full Frame, 1440 × 1080 px, max. 121 fps |
| Pixel formats | BayerRG8, BayerRG10, BayerRG12, BayerRG12 Packed, Mono8, Mono10, Mono12, Mono12 Packed, RGB8, BGR8 |
| Analog controls | Gain (0 … 48 dB), Offset (0 … 255 LSB 12 Bit) |
| Color models | Mono, Raw Bayer, RGB, BGR |
| Basic Functions | Exposure, Gain / Color Gain, Trigger / Exposure Active (Flash), Binning 2x2, Partial Scan, Offset, Free Running Mode (Live Image) |
| Auto Functions | White Balance Auto |
| Image Pre-processing | Image Flipping (X/Y), Color Processing (RGB, BGR, Mono), Color Enhancement (with optimized ColorTransformationMatrix), LUT / Gamma |
| Acquisition / Interface | Burst Mode, Adjustable Framerate, Short Exposure Time Enable, Device Link Throughput Limit, Internal Image Buffer |
| Synchronization | free running, trigger |
| Trigger sources | Hardware, Software, ActionCommand |
| Trigger delay | 0 … 2 sec, tracking and buffering of up to 128 trigger signals |
| Process Synchronization | Events, Timer, Trigger Delay, Debouncer, Counter, Sequencer, Trigger via Action CMD (GigE), Action CMD Request ID, Trigger ID inside Chunk, Additional Output Modes (e.g. Trigger Ready), PWM (PWM Duration / PWM Duty Cycle), 4 power outputs with up to 120 W (max. 48 V / 2.5 A), Selectable Output format (e.g. Tri State, Push Pull), Chunk data inside transferred image, Encoder support via Counter End trigger source |
| Additional Functions | User Set, Integrated temperature sensor, Readable additional information (e.g. sensor information), Save Custom Data |
| Internal image buffer | 36 MB, 8 images (Trigger Mode), 1 image (Free Running Mode) |
| Data interface | Gigabit Ethernet, Transfer rate 1000 Mbits/sec, Fast Ethernet, Transfer rate 100 Mbits/sec, Connector: M12 / 8 pol x-coded, screwable type |
| Process interface | M12 / 12 pins a-coded (SACC-CI-M12MS-12CON-L180) |
| Power supply | via M12/12 pins a-coded or Power over Ethernet (PoE) |
| Lens mount | C-mount |
| Width | 40 mm |
| Height | 40 mm |
| Depth | 50.8 mm |
| Weight | ≤ 137 g |
| Material | aluminum, hard-anodized |
| Voltage supply range +Vs | 12 … 24 V DC (external power supply), 36 … 57 V DC (Power over Ethernet) |
| Power consumption | Approx. 2.6 W @ 12 VDC and 79 fps, Approx. 3.2 W @ 48 VDC (PoE) and 79 fps |
| Flash memory size | 128 kB |
| Operating temperature | 0 … +65 ° @ T = measurement point |
| Storage temperature | -20 … +70 °C |
| Humidity | 10 … 90 % (non-condensing) |
| Protection class | IP 54 (with mounted lens and cable), IP 65 (with mounted tube and cable), IP 67 (with mounted tube and cable), IP 69K (with stainless steel housing accessory) |
| Lines | 4 input lines, 4 power output lines with pulse width modulation (PWM) (max. 48 V / max. 2,5 A) |
