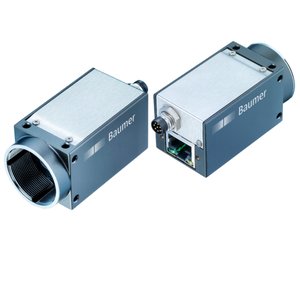

Baumer VCXG-13NIR Industrial Camera
The Baumer VCXG-13NIR Industrial Camera offers a 57.3 dB dynamic range, Global shutter, C-mount, and onsemi PYTHON1300 connection. Manufactured by Baumer under the Baumer Industrial Camera category, this model belongs to the CX Series.
| Brand | Baumer |
| Product Type | Industrial Camera |
| Model Number | VCXG-13NIR |
Baumer VCXG-13NIR Industrial Camera – Technical Specifications
| Specification | Value |
|---|---|
| Sensor | onsemi PYTHON1300 |
| Mono/Color | NIR |
| Sensor type | 1/2″ CMOS |
| Shutter type | Global shutter |
| Resolution | 1280 × 1024 px |
| Pixel size | 4.8 × 4.8 µm |
| Exposure time | 0.02 … 1000 ms |
| Dark noise | 9.83 e- |
| Saturation capacity | 7835 e- |
| Dynamic range | 57.3 dB |
| Signal-to-noise ratio | 38.9 dB |
| Quantum efficiency | 59.5 % @ 535 nm, 2.3 % @ 1042 nm, 35.8 % @ 840 nm, 15.4 % @ 930 nm, 44.2 % @ 406 nm |
| Image formats, interface frame rate max. | Full Frame, 1280 × 1024 px, max. 94 fps, Binning 2×2, 640 × 512 px, max. 148 fps, Binning 2×1, 640 × 1024 px, max. 148 fps, Binning 1×2, 1280 × 512 px, max. 148 fps |
| Image formats, aquisition frame rate max. (Burst Mode) | Full Frame, 1280 × 1024 px, max. 146 fps |
| Pixel formats | Mono8, Mono10 |
| Analog controls | Gain (0 … 12 dB), Offset (0 … 63 LSB 10 Bit) |
| Color models | NIR |
| Basic Functions | Exposure, Gain, Trigger / Exposure Active (Flash), Binning 2x2, Partial Scan, Offset, Free Running Mode (Live Image) |
| Auto Functions | Exposure Auto, Gain Auto |
| Image Pre-processing | Image Flipping (X/Y), LUT / Gamma |
| Acquisition / Interface | Burst Mode, Adjustable Framerate, Device Link Throughput Limit, Internal Image Buffer |
| Synchronization | free running, trigger |
| Trigger sources | Hardware, Software, ActionCommand |
| Trigger delay | 0 … 2 sec, tracking and buffering of up to 256 trigger signals |
| Process Synchronization | Events, Timer, Trigger Delay, Debouncer, Counter, Sequencer, Trigger via Action CMD (GigE), Additional Output Modes (e.g. Trigger Ready), Chunk data inside transferred image, Encoder support via Counter End trigger source |
| Additional Functions | User Set, Integrated temperature sensor, Readable additional information (e.g. sensor information) |
| Internal image buffer | 60 MB, 16 images (Trigger Mode), 1 image (Free Running Mode) |
| Data interface | Gigabit Ethernet, Transfer rate 1000 Mbits/sec, Fast Ethernet, Transfer Rate 100 Mbits/sec, Connector: 8P8C Modular Jack (RJ45), screwable type |
| Process interface | M8 / 8 pins (SACC-DSI-M8MS-8CON-M8-L180) |
| Power supply | via M8/8 pins or Power over Ethernet (PoE) |
| Lens mount | C-mount |
| Width | 29 mm |
| Height | 29 mm |
| Depth | 49 mm |
| Weight | ≤ 120 g |
| Material | zinc die casting, baked varnish (until 02-2020 nickel-chrome-plated), IP 40 |
| Voltage supply range +Vs | 12 … 24 V DC (external power supply), 36 … 57 V DC (Power over Ethernet) |
| Power consumption | Approx. 2.5 W @ 12 VDC and 94 fps, Approx. 3.0 W @ 48 VDC (PoE) and 94 fps |
| Flash memory size | 128 kB |
| Operating temperature | 0 … +65 ° @ T = measurement point |
| Storage temperature | -20 … +70 °C |
| Humidity | 10 … 90 % (non-condensing) |
| Protection class | IP 40 (with mounted lens and cable) |
| Lines | 1 input line, 1 output line, 2 general purpose lines |
