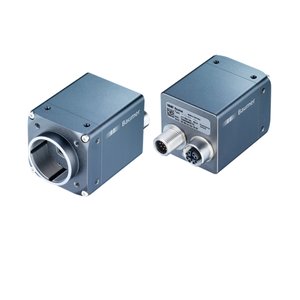

Baumer VCXG-124M.I Industrial Camera
The Baumer VCXG-124M.I Industrial Camera offers a 70.4 dB dynamic range, Global shutter, C-mount, and Sony IMX304 Gen2 connection. Manufactured by Baumer under the Baumer Industrial Camera category, this model belongs to the CX Series.
| Brand | Baumer |
| Product Type | Industrial Camera |
| Model Number | VCXG-124M.I |
Baumer VCXG-124M.I Industrial Camera – Technical Specifications
| Specification | Value |
|---|---|
| Sensor | Sony IMX304 Gen2 |
| Mono/Color | Mono |
| Sensor type | 1.1″ CMOS |
| Shutter type | Global shutter |
| Resolution | 4096 × 3000 px |
| Pixel size | 3.45 × 3.45 µm |
| Exposure time | 0.001 … 60000 ms |
| Dark noise | 2.07 e- |
| Saturation capacity | 9073 e- |
| Dynamic range | 70.4 dB |
| Signal-to-noise ratio | 39.6 dB |
| Quantum efficiency | 65 % @ 536 nm |
| Image formats, interface frame rate max. | Full Frame, 4096 × 3000 px, max. 9 fps, Binning 2×2, 2048 × 1500 px, max. 15 fps, Binning 2×1, 2048 × 3000 px, max. 15 fps, Binning 1×2, 4096 × 1500 px, max. 15 fps |
| Image formats, aquisition frame rate max. (Burst Mode) | Full Frame, 4096 × 3000 px, max. 15 fps |
| Pixel formats | Mono8, Mono10 |
| Analog controls | Gain (0 … 48 dB), Offset (0 … 255 LSB 12 Bit) |
| Color models | Mono |
| Basic Functions | Exposure, Gain, Trigger / Exposure Active (Flash), Binning 2x2, Partial Scan, Offset, Free Running Mode (Live Image) |
| Auto Functions | Exposure Auto, Gain Auto |
| Image Pre-processing | Image Flipping (X/Y), LUT / Gamma |
| Acquisition / Interface | Burst Mode, Adjustable Framerate, Short Exposure Time Enable, Device Link Throughput Limit, Internal Image Buffer |
| Synchronization | free running, trigger |
| Trigger sources | Hardware, Software, ActionCommand |
| Trigger delay | 0 … 2 sec, tracking and buffering of up to 256 trigger signals |
| Process Synchronization | Events, Timer, Trigger Delay, Debouncer, Counter, Sequencer, Trigger via Action CMD (GigE), Additional Output Modes (e.g. Trigger Ready), PWM (PWM Duration / PWM Duty Cycle), 4 power outputs with up to 120 W (max. 48 V / 2.5 A), Selectable Output format (e.g. Tri State, Push Pull), Chunk data inside transferred image, Encoder support via Counter End trigger source |
| Additional Functions | User Set, Integrated temperature sensor, Readable additional information (e.g. sensor information) |
| Internal image buffer | 36 MB, 1 image (Trigger Mode), 1 image (Free Running Mode) |
| Data interface | Gigabit Ethernet, Transfer rate 1000 Mbits/sec, Fast Ethernet, Transfer rate 100 Mbits/sec, Connector: M12 / 8 pol x-coded, screwable type |
| Process interface | M12 / 12 pins a-coded (SACC-CI-M12MS-12CON-L180) |
| Power supply | via M12/12 pins a-coded or Power over Ethernet (PoE) |
| Lens mount | C-mount |
| Width | 40 mm |
| Height | 40 mm |
| Depth | 50.8 mm |
| Weight | ≤ 137 g |
| Material | aluminum, hard-anodized |
| Voltage supply range +Vs | 12 … 24 V DC (external power supply), 36 … 57 V DC (Power over Ethernet) |
| Power consumption | Approx. 2.5 W @ 12 VDC and 9 fps, Approx. 3.2 W @ 48 VDC (PoE) and 9 fps |
| Flash memory size | 128 kB |
| Operating temperature | 0 … +65 ° @ T = measurement point |
| Storage temperature | -20 … +70 °C |
| Humidity | 10 … 90 % (non-condensing) |
| Protection class | IP 40 (with mounted lens and cable), IP 54 (with mounted lens and cable), IP 65 (with mounted tube and cable), IP 67 (with mounted tube and cable), IP 69K (with stainless steel housing accessory) |
| Lines | 4 input lines, 4 power output lines with pulse width modulation (PWM) (max. 48 V / max. 2,5 A) |
