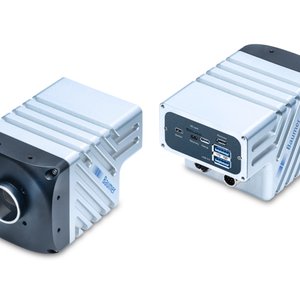

Home Brands Baumer Industrial Camera VAX-32M.I.NVN Baumer VAX-32M.I.NVN Industrial Camera The Baumer VAX-32M.I.NVN Industrial Camera offers a 70.7 dB dynamic range, Global shutter , C-mount , and Sony IMX265 Gen2 connection. Manufactured by Baumer under the Baumer Industrial Camera category, this model belongs to the CX Series.
Brand Baumer Product Type Industrial Camera Model Number VAX-32M.I.NVN
Baumer VAX-32M.I.NVN Industrial Camera – Technical Specifications Specification Value Sensor Sony IMX265 Gen2 Mono/Color Mono Sensor type 1/1.8″ CMOS Shutter type Global shutter Resolution 2048 × 1536 px Pixel size 3.45 × 3.45 µm Exposure time 0.001 … 60000 ms Dark noise 2.04 e- Saturation capacity 9341 e- Dynamic range 70.7 dB Signal-to-noise ratio 39.7 dB Image formats, interface frame rate max. Full Frame, 2048 × 1536 px, max. 55 fps, Binning 2×2, 1024 × 768 px, max. 55 fps, Binning 2×1, 1024 × 1536 px, max. 55 fps, Binning 1×2, 2048 × 768 px, max. 55 fps Image formats, aquisition frame rate max. (Burst Mode) Full Frame, 2048 × 1536 px, max. 55 fps Pixel formats Mono8, Mono10, Mono12, Mono12 Packed Analog controls Gain (0 … 48 dB), Offset (0 … 255 LSB 12 Bit) Color models Mono Internal image buffer 432 MB, 48 images (Trigger Mode), 1 image (Free Running Mode) Process interface M12 / 12 pins a-coded (SACC-CI-M12MS-12CON-L180) Power supply via M12/12 pins a-coded Lens mount C-mount Width 70 mm Height 70 mm Depth 120 mm Weight ≤ 650 g Material aluminum, hard-anodized Power consumption Approx. 13.2 W @ 55 fps Operating temperature 0 … +65 ° @ T = measurement point Humidity 10 … 90 % (non-condensing) Protection class IP 65 (with mounted tube and cable), IP 67 (with mounted tube and cable)
