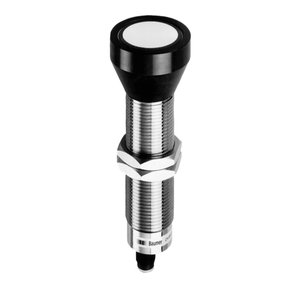

Baumer UZAM 50N6121/S14 Ultrasonic Sensor
The Baumer UZAM 50N6121/S14 Ultrasonic Sensor offers a Cylindrical threaded design, 350 β¦ 2500 mm range, 12 β¦ 30 VDCV supply voltage, NPN make function (NO) output, and Connector M12 connection. Manufactured by Baumer under the Baumer Ultrasonic Sensor category, this model belongs to the UZAM Series.
| Brand | Baumer |
| Product Type | Ultrasonic Sensor |
| Model Number | UZAM 50N6121/S14 |
Baumer UZAM 50N6121/S14 Ultrasonic Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Scanning range Sd | 350 β¦ 2500 mm |
| Scanning range far limit Sde | 350 β¦ 2500 mm |
| Hysteresis typ. | 4 % Sde |
| Repeat accuracy | 1 mm |
| Temperature drift | < 2 % Sde |
| Sonic frequency | 120 kHz |
| Adjustment | Teach-in |
| Voltage supply range +Vs | 12 β¦ 30 VDC |
| Output circuit | NPN make function (NO) |
| Output current | 200 mA |
| Voltage drop Vd | <2 VDC |
| Residual ripple | < 10 % Vs |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Design | Cylindrical threaded |
| Housing material | Brass nickel plated |
| Width / diameter | 30 mm |
| Height / length | 95 mm |
| Connection types | Connector M12 |
| Operating temperature | -10 β¦ +60 Β°C |
| Protection class | IP 67 |
| Output indicator | Green / yellow LED |
Get A Quote for Ultrasonic Proximity Switch, Large Range UZAM 50N6121/S14 part no: 10129063 at the best price. Here are the brief Technical Specifications of UZAM 50N6121/S14, 10129063 are scanning range of 350 β¦ 2500 mm. This sensor has a hysteresis of 4 % Sde and operates at a sonic frequency of 120 kHz. It features Teach-in, adjustment options, providing flexible configuration. The sensor operates within a voltage supply range of 12 β¦ 30 VDC and uses a NPN make function (NO) output circuit, supporting an output current of up to 200 mA. Designed in compact Cylindrical threaded housing, it measures 30 mm in width and 95 mm in height, making it suitable for various industrial applications. The housing is made from durable Brass nickel plated, ensuring longevity in demanding environments. The sensor connects via an Connector M12, offering easy integration into your system. It's Time to get a Quote for your requirement of Ultrasonic Proximity Switch, Large Range. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
