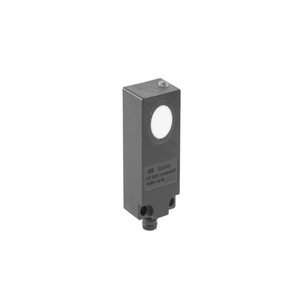

Baumer USDK 20D9003/S35A Ultrasonic Sensor

The Baumer USDK 20D9003/S35A Ultrasonic Sensor offers a Emitter, 0 … 1000 mm sensing range, 15 … 30 VDC supply voltage, LED yellow indication, and Connector M8 connection. Manufactured by Baumer under the Baumer Ultrasonic Sensor category, this model belongs to the USDK Series.

Baumer USDK 20D9003/S35A
Datasheet
BrandBaumer
Product TypeUltrasonic Sensor
Model NumberUSDK 20D9003/S35A

Baumer USDK 20D9003/S35A Ultrasonic Sensor – Technical Specifications

SpecificationValue
Emitter / receiverEmitter
Scanning range Sd0 … 1000 mm
Scanning range far limit Sde0 … 1000 mm
Sonic frequency250 kHz
Alignment aidTarget indication flashing
Power on indicationLED yellow
Voltage supply range +Vs15 … 30 VDC
Current consumption max. (no load)40 mA
Residual ripple< 10 % Vs
DesignRectangular
Housing materialPolyester
Width / diameter20 mm
Height / length42 mm
Depth15 mm
Connection typesConnector M8
Operating temperature0 … +60 °C
Protection classIP 67

Related Products

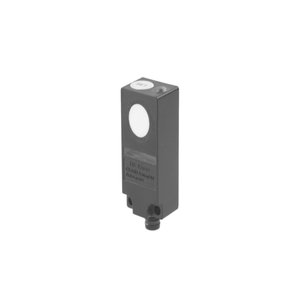

UEDK 20P6103/S35AUEDK 20P6103/S35A

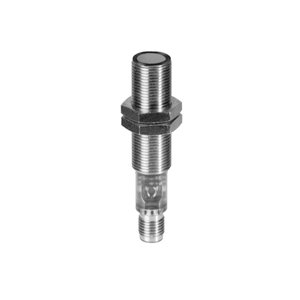

UR18.TB0.2-ZZZZ.9SFUR18.TB0.2-ZZZZ.9SF

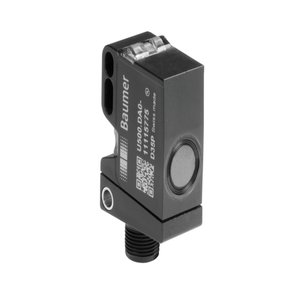

U500.TB0.2-ZZZZ.72FU500.TB0.2-ZZZZ.72F
