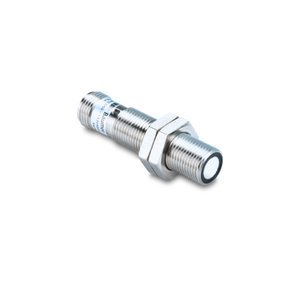

Baumer UR12.TA0-ZZZX.7BF: Level Sensors
Technical Specifications of Baumer UR12.TA0-ZZZX.7BF 11704837:
| Voltage supply range +Vs | 12 … 30 VDC |
Baumer Level Sensors UR12.TA0-ZZZX.7BF Technical Specifications
| Specification | Value |
|---|
| Power on indication | LED green |
| Voltage supply range +Vs | 12 … 30 VDC |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes, Vs to GND |
| Design | Cylindrical threaded |
| Housing material | Brass nickel plated |
| Connection types | Connector M12 5 pin |
| Operating temperature | -25 … +65 °C |
| Storage temperature | -40 … +75 °C |
| Protection class | IP 67 |
| Scanning range Sd | 0 … 1000 mm |
| Scanning range far limit Sde | 0 … 1000 mm |
| Sonic frequency | 310 kHz |
| Current consumption typ. | 25 mA |
| Residual ripple | < 10 % Vs |
| Width / diameter | 12 mm |
| Height / length | 50 mm |
| Emitter / receiver | Emitter |
