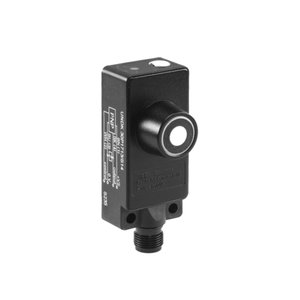

Baumer UNDK 30U9113/S14: Level Sensors
Technical Specifications of Baumer UNDK 30U9113/S14 10119437:
| Voltage supply range +Vs | 15 … 30 VDC |
| Output circuit | Voltage output |
| Output current | 20 mA |
Baumer Level Sensors UNDK 30U9113/S14 Technical Specifications
| Specification | Value |
|---|---|
| Voltage supply range +Vs | 15 … 30 VDC |
| Current consumption max. (no load) | 35 mA |
| Output circuit | Voltage output |
| Output current | 20 mA |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Design | Rectangular |
| Housing material | Polyester / die-cast zinc |
| Depth | 31 mm |
| Connection types | Connector M12 |
| Operating temperature | -10 … +60 °C |
| Protection class | IP 67 |
| Scanning range Sd | 30 … 250 mm |
| Scanning range far limit Sde | 30 … 250 mm |
| Repeat accuracy | 0.5 mm |
| Resolution | < 0.3 mm |
| Temperature drift | > 50 mm < 2 % of distance to target Sde |
| Sonic frequency | 300 kHz |
| Adjustment | Potentiometer |
| Light indicator | LED green |
| Output signal | 0 ... 10 VDC |
| Residual ripple | < 10 % Vs |
| Width / diameter | 30 mm |
| Height / length | 65 mm |
| Alignment aid | Target indication flashing |
| Response time ton | < 50 ms |
| Release time toff | < 50 ms |
