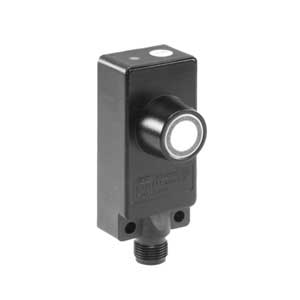

Baumer UNDK 30U6113/S14 Ultrasonic Distance Sensor
The Baumer UNDK 30U6113/S14 Ultrasonic Distance Sensor offers a Rectangular design, 30 β¦ 250 mm scanning range, Voltage output output, and Connector M12 connection. Manufactured by Baumer under the Baumer Ultrasonic Distance Sensor category, this model belongs to the UNDK Series.
| Brand | Baumer |
| Product Type | Ultrasonic Distance Sensor |
| Product | UNDK 30U6113/S14 |
Baumer UNDK 30U6113/S14 Ultrasonic Distance Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Scanning range Sd | 30 β¦ 250 mm |
| Version | - |
| Hysteresis typ. | - |
| Repeat accuracy | 0.5 mm |
| Response time ton | < 50 ms |
| Release time toff | < 50 ms |
| Sonic frequency | 300 kHz |
| Adjustment | Teach-in |
| Light indicator | Yellow LED / red LED |
| Power on indication | - |
| Alignment measuring axis | - |
| Voltage supply range +Vs | 15 β¦ 30 VDC |
| Output circuit | Voltage output |
| Output current | 20 mA |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Interface | - |
| Baud rate | - |
| Cycle time | - |
| Process data length | - |
| IO-Link port type | - |
| IO-Link | - |
| Design | Rectangular |
| Housing material | Polyester / die-cast zinc |
| Width / diameter | 30 mm |
| Height / length | 65 mm |
| Depth | 31 mm |
| Connection types | Connector M12 |
| Operating temperature | -10 β¦ +60 Β°C |
| Protection class | IP 67 |
Mail Us for Baumer 250 mm Range Ultrasonic Distance Sensor UNDK 30U6113/S14 part no: 10126903 at unbeatable prices. Detailed Specifications of UNDK 30U6113/S14, 10126903 feature The sensor operates within a range of 30 β¦ 250 mm, with an accuracy of 0.5 mm. It features a fast response time of < 50 ms and operates at a frequency of 300 kHz. The sensor supports Teach-in for easy setup and includes Yellow LED / red LED indicators for status monitoring. It operates on a 15 β¦ 30 VDC power supply and provides a Voltage output with a current consumption of 20 mA. The sensor is housed in a Rectangular body made of Polyester / die-cast zinc, measuring 30 mm in diameter and 65 mm in length. It includes an Connector M12 and is rated IP 67, ensuring protection against dust and water. The sensor operates reliably in temperatures from -10 β¦ +60 Β°C. Elevate Your Project with a Quote for your requirement of Baumer 250 mm Range Ultrasonic Distance Sensor. Count on us for more economical pricing and more reliable support than other Traders & Suppliers.
