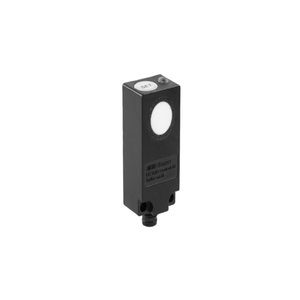

Baumer UNDK 20N6903/S35A Ultrasonic Sensor
The Baumer UNDK 20N6903/S35A Ultrasonic Sensor offers a Rectangular design, 100 β¦ 1000 mm range, 12 β¦ 30 VDCV supply voltage, NPN make function (NO) output, and Connector M8 connection. Manufactured by Baumer under the Baumer Ultrasonic Sensor category, this model belongs to the UNDK Series.
| Brand | Baumer |
| Product Type | Ultrasonic Sensor |
| Model Number | UNDK 20N6903/S35A |
Baumer UNDK 20N6903/S35A Ultrasonic Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Scanning range Sd | 100 β¦ 1000 mm |
| Scanning range far limit Sde | 100 β¦ 1000 mm |
| Hysteresis typ. | 4 % Sde |
| Repeat accuracy | 0.5 mm |
| Temperature drift | < 0,18 % Sde/K |
| Sonic frequency | 240 kHz |
| Adjustment | Teach-in |
| Voltage supply range +Vs | 12 β¦ 30 VDC |
| Output circuit | NPN make function (NO) |
| Output current | 200 mA |
| Voltage drop Vd | <2 VDC |
| Residual ripple | < 10 % Vs |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Design | Rectangular |
| Housing material | Polyester |
| Width / diameter | 20 mm |
| Height / length | 42 mm |
| Depth | 15 mm |
| Connection types | Connector M8 |
| Operating temperature | -10 β¦ +60 Β°C |
| Protection class | IP 67 |
| Output indicator | LED green |
Call us for Baumer Ultrasonic Sensor With NPN UNDK 20N6903/S35A part no: 10159515 at the best rates. Technical Attributes of UNDK 20N6903/S35A, 10159515 are scanning range of 100 β¦ 1000 mm. This sensor has a hysteresis of 4 % Sde and operates at a sonic frequency of 240 kHz. It features Teach-in, adjustment options, providing flexible configuration. The sensor operates within a voltage supply range of 12 β¦ 30 VDC and uses a NPN make function (NO) output circuit, supporting an output current of up to 200 mA. Designed in compact Rectangular housing, it measures 20 mm in width and 42 mm in height, making it suitable for various industrial applications. The housing is made from durable Polyester, ensuring longevity in demanding environments. The sensor connects via an Connector M8, offering easy integration into your system. Unlock Exclusive Pricing with a Quote for your requirement of Baumer Ultrasonic Sensor With NPN. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
