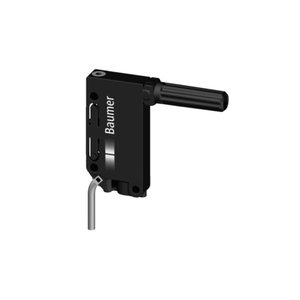

Baumer UNDK 09T9114/D1: Level Sensors
Technical Specifications of Baumer UNDK 09T9114/D1 11007903:
| Voltage supply range +Vs | 15 … 30 VDC |
| Output circuit | RS232 |
Baumer Level Sensors UNDK 09T9114/D1 Technical Specifications
| Specification | Value |
|---|---|
| Voltage supply range +Vs | 15 … 30 VDC |
| Current consumption max. (no load) | 35 mA |
| Output circuit | RS232 |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes, Vs to GND |
| Design | Rectangular |
| Housing material | PA 12 |
| Depth | 57.7 mm |
| Connection types | Cable PUR 4 x 0,08, 2 m |
| Operating temperature | 0 … +60 °C |
| Protection class | IP 67 |
| Scanning range Sd | 3 … 150 mm |
| Scanning range close limit Sdc | 3 … 150 mm |
| Scanning range far limit Sde | 3 … 150 mm |
| Repeat accuracy | 0.5 mm |
| Resolution | < 0.3 mm |
| Temperature drift | < 0,18 % Sde/K (comp. off, factory set), < 2 % So (compensation on) |
| Sonic frequency | 380 kHz |
| Light indicator | Yellow LED / red LED |
| Baud rate | 115200 |
| Residual ripple | < 10 % Vs |
| Width / diameter | 8.6 mm |
| Height / length | 48.8 mm |
| Alignment aid | Target indication flashing |
| Response time ton | < 7 ms |
