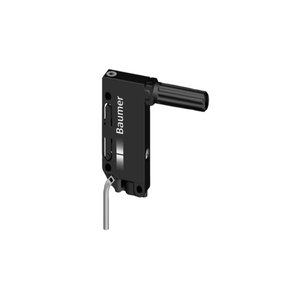

Baumer UNDK 09G8914/D1 Ultrasonic Sensor
The Baumer UNDK 09G8914/D1 Ultrasonic Sensor offers a Rectangular design, 3 β¦ 150 mm range, 12 β¦ 30 VDCV supply voltage, Push-pull output, and Cable PUR 4 x 0,08, 2 m connection. Manufactured by Baumer under the Baumer Ultrasonic Sensor category, this model belongs to the UNDK Series.
| Brand | Baumer |
| Product Type | Ultrasonic Sensor |
| Model Number | UNDK 09G8914/D1 |
Baumer UNDK 09G8914/D1 Ultrasonic Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Scanning range Sd | 3 β¦ 150 mm |
| Scanning range far limit Sde | 3 β¦ 150 mm |
| Hysteresis typ. | 4 % Sde |
| Repeat accuracy | 0.5 mm |
| Temperature drift | < 0,18 % Sde/K |
| Sonic frequency | 380 kHz |
| Adjustment | Teach-in |
| Voltage supply range +Vs | 12 β¦ 30 VDC |
| Output circuit | Push-pull |
| Output current | 100 mA |
| Voltage drop Vd | <2 VDC |
| Residual ripple | < 10 % Vs |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Design | Rectangular |
| Housing material | PA 12 |
| Width / diameter | 8.6 mm |
| Height / length | 48.8 mm |
| Depth | 57.7 mm |
| Connection types | Cable PUR 4 x 0,08, 2 m |
| Operating temperature | 0 β¦ +60 Β°C |
| Protection class | IP 67 |
| Output indicator | Green LED / red LED |
Call us for Baumer Proximity Sensor Rectangular Design UNDK 09G8914/D1 part no: 11007886 at the best rates. Technical Attributes of UNDK 09G8914/D1, 11007886 are scanning range of 3 β¦ 150 mm. This sensor has a hysteresis of 4 % Sde and operates at a sonic frequency of 380 kHz. It features Teach-in, adjustment options, providing flexible configuration. The sensor operates within a voltage supply range of 12 β¦ 30 VDC and uses a Push-pull output circuit, supporting an output current of up to 100 mA. Designed in compact Rectangular housing, it measures 8.6 mm in width and 48.8 mm in height, making it suitable for various industrial applications. The housing is made from durable PA 12, ensuring longevity in demanding environments. The sensor connects via an Cable PUR 4 x 0,08, 2 m, offering easy integration into your system. Unlock Exclusive Pricing with a Quote for your requirement of Baumer Proximity Sensor Rectangular Design. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
