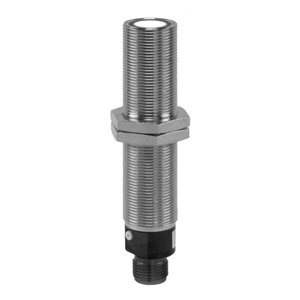

Baumer UNAR 18I6912/S14G: Level Sensors
Technical Specifications of Baumer UNAR 18I6912/S14G 10162125:
| Voltage supply range +Vs | 15 β¦ 30 VDC |
| Output circuit | Current output |
| Output current | 20 mA |
Baumer Level Sensors UNAR 18I6912/S14G Technical Specifications
| Specification | Value |
|---|---|
| Special type | Chemically robust |
| Voltage supply range +Vs | 15 β¦ 30 VDC |
| Current consumption max. (no load) | 55 mA |
| Output circuit | Current output |
| Output current | 20 mA |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Design | Cylindrical threaded |
| Housing material | Stainless steel 1.4435 (V4A) |
| Connection types | Connector M12 |
| Operating temperature | 0 β¦ +60 Β°C |
| Protection class | IP 67 |
| Scanning range Sd | 60 β¦ 400 mm |
| Scanning range close limit Sdc | 60 β¦ 400 mm |
| Scanning range far limit Sde | 60 β¦ 400 mm |
| Repeat accuracy | 0.5 mm |
| Resolution | < 0.3 mm |
| Temperature drift | < 2 % Sde |
| Sonic frequency | 400 kHz |
| Adjustment | Teach-in |
| Light indicator | Yellow LED / red LED |
| Output signal | 4 ... 20 mA / 20 ... 4 mA |
| Residual ripple | < 10 % Vs |
| Width / diameter | 18 mm |
| Height / length | 91.5 mm |
| Alignment aid | Target indication flashing |
| Response time ton | < 60 ms |
| Release time toff | < 60 ms |
