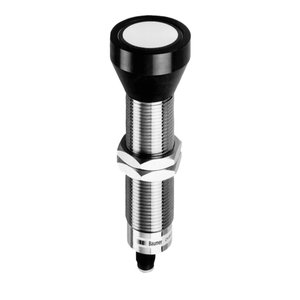

Baumer UNAM 50N1721/S14 Ultrasonic Sensor
The Baumer UNAM 50N1721/S14 Ultrasonic Sensor offers a Cylindrical threaded design, 350 β¦ 2500 mm range, 12 β¦ 30 VDCV supply voltage, NPN make function (NO) output, and Connector M12 connection. Manufactured by Baumer under the Baumer Ultrasonic Sensor category, this model belongs to the UNAM Series.
| Brand | Baumer |
| Product Type | Ultrasonic Sensor |
| Model Number | UNAM 50N1721/S14 |
Baumer UNAM 50N1721/S14 Ultrasonic Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Scanning range Sd | 350 β¦ 2500 mm |
| Scanning range far limit Sde | 350 β¦ 2500 mm |
| Hysteresis typ. | 4 % Sde |
| Repeat accuracy | 1 mm |
| Temperature drift | < 0,18 % Sde/K |
| Sonic frequency | 120 kHz |
| Adjustment | Potentiometer |
| Voltage supply range +Vs | 12 β¦ 30 VDC |
| Output circuit | NPN make function (NO) |
| Output current | 200 mA |
| Voltage drop Vd | <2 VDC |
| Residual ripple | < 10 % Vs |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Design | Cylindrical threaded |
| Housing material | Brass nickel plated |
| Width / diameter | 30 mm |
| Height / length | 95 mm |
| Connection types | Connector M12 |
| Operating temperature | -25 β¦ +60 Β°C |
| Protection class | IP 67 |
| Output indicator | LED green |
Call us for Baumer NPN Make Function Ultrasonic Sensor UNAM 50N1721/S14 part no: 10232792 at the best rates. Technical Attributes of UNAM 50N1721/S14, 10232792 are scanning range of 350 β¦ 2500 mm. This sensor has a hysteresis of 4 % Sde and operates at a sonic frequency of 120 kHz. It features Potentiometer, adjustment options, providing flexible configuration. The sensor operates within a voltage supply range of 12 β¦ 30 VDC and uses a NPN make function (NO) output circuit, supporting an output current of up to 200 mA. Designed in compact Cylindrical threaded housing, it measures 30 mm in width and 95 mm in height, making it suitable for various industrial applications. The housing is made from durable Brass nickel plated, ensuring longevity in demanding environments. The sensor connects via an Connector M12, offering easy integration into your system. Unlock Exclusive Pricing with a Quote for your requirement of Baumer NPN Make Function Ultrasonic Sensor. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
