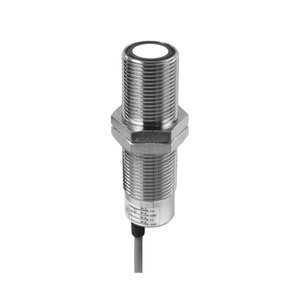

Baumer UNAM 30N1104 Ultrasonic Sensor
The Baumer UNAM 30N1104 Ultrasonic Sensor offers a Cylindrical threaded design, 200 β¦ 1500 mm range, 12 β¦ 30 VDCV supply voltage, NPN make function (NO) output, and Cable, L=2 m connection. Manufactured by Baumer under the Baumer Ultrasonic Sensor category, this model belongs to the UNAM Series.
| Brand | Baumer |
| Product Type | Ultrasonic Sensor |
| Model Number | UNAM 30N1104 |
Baumer UNAM 30N1104 Ultrasonic Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Scanning range Sd | 200 β¦ 1500 mm |
| Scanning range far limit Sde | 200 β¦ 1500 mm |
| Hysteresis typ. | 4 % Sde |
| Repeat accuracy | 1 mm |
| Temperature drift | < 0,18 % Sde/K |
| Sonic frequency | 200 kHz |
| Adjustment | Potentiometer |
| Voltage supply range +Vs | 12 β¦ 30 VDC |
| Output circuit | NPN make function (NO) |
| Output current | 200 mA |
| Voltage drop Vd | <2 VDC |
| Residual ripple | < 10 % Vs |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Design | Cylindrical threaded |
| Housing material | Brass nickel plated |
| Width / diameter | 30 mm |
| Height / length | 70 mm |
| Connection types | Cable, L=2 m |
| Operating temperature | -25 β¦ +60 Β°C |
| Protection class | IP 67 |
| Output indicator | LED green |
Mail Us for your needs in Baumer NPN Output Ultrasonic Proximity Sensor UNAM 30N1104 part no: 10224448 with budget-friendly prices. The Main Technical Parameters of UNAM 30N1104, 10224448 inludce scanning range of 200 β¦ 1500 mm. This sensor has a hysteresis of 4 % Sde and operates at a sonic frequency of 200 kHz. It features Potentiometer, adjustment options, providing flexible configuration. The sensor operates within a voltage supply range of 12 β¦ 30 VDC and uses a NPN make function (NO) output circuit, supporting an output current of up to 200 mA. Designed in compact Cylindrical threaded housing, it measures 30 mm in width and 70 mm in height, making it suitable for various industrial applications. The housing is made from durable Brass nickel plated, ensuring longevity in demanding environments. The sensor connects via an Cable, L=2 m, offering easy integration into your system. Customize Your Experience with a Quote for your requirement of Baumer NPN Output Ultrasonic Proximity Sensor. Experience the difference with our competitive pricing and superior support over other Suppliers.
