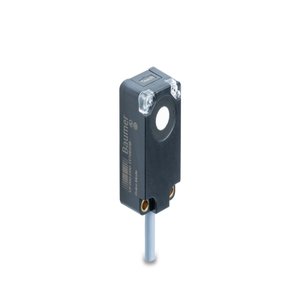

Baumer UF200.P50-GP1J.72CU Ultrasonic Sensor
The Baumer UF200.P50-GP1J.72CU Ultrasonic Sensor offers a Rectangular design, 15 β¦ 500 mm range, 12 β¦ 30 VDCV supply voltage, Push-pull output, and Cable 4 pin, 2 m connection. Manufactured by Baumer under the Baumer Ultrasonic Sensor category, this model belongs to the UF200 Series.
| Brand | Baumer |
| Product Type | Ultrasonic Sensor |
| Model Number | UF200.P50-GP1J.72CU |
Baumer UF200.P50-GP1J.72CU Ultrasonic Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Scanning range Sd | 15 β¦ 500 mm |
| Scanning range far limit Sde | 15 β¦ 500 mm |
| Version | IO-Link, Multiplex version |
| Hysteresis typ. | 4 % Sde |
| Repeat accuracy | 0.5 mm |
| Temperature drift | < 2 % of distance to target Sde |
| Power-up drift | Compensated after 15 min. |
| Response time ton/toff min | < 16 ms |
| Response time ton/toff standard | < 40 ms |
| Sonic frequency | 290 kHz |
| Adjustment | qTeach, line-Teach, IO-Link |
| Light indicator | LED yellow |
| Power on indication | LED green |
| Alignment measuring axis | < 2Β° |
| Voltage supply range +Vs | 12 β¦ 30 VDC |
| Current consumption typ. | 12 mA |
| Output circuit | Push-pull |
| Output current | <100 mA |
| Voltage drop Vd | <3 VDC |
| Residual ripple | < 10 % Vs |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes, Vs to GND |
| Interface | IO-Link V1.1 |
| Baud rate | 38,4 kBaud (COM 2) |
| Cycle time | β₯ 8 ms |
| Process data length | 48 Bit |
| Design | Rectangular |
| Housing material | Plastic (ASA, PMMA) |
| Width / diameter | 20.5 mm |
| Height / length | 41 mm |
| Depth | 15 mm |
| Connection types | Cable 4 pin, 2 m |
| Operating temperature | -25 β¦ +65 Β°C |
| Storage temperature | -25 β¦ +75 Β°C |
| Protection class | IP 67 |
Give Us a Call for Baumer Industrial Ultrasonic Sensor UF200.P50-GP1J.72CU part no: 11708328 at the lowest pricing. In-depth Technical Analysis of UF200.P50-GP1J.72CU, 11708328 feature scanning range of 15 β¦ 500 mm. This IO-Link, Multiplex version sensor has a hysteresis of 4 % Sde and operates at a sonic frequency of 290 kHz. It features qTeach, line-Teach, IO-Link, adjustment options, providing flexible configuration. The sensor operates within a voltage supply range of 12 β¦ 30 VDC and uses a Push-pull output circuit, supporting an output current of up to <100 mA. Designed in compact Rectangular housing, it measures 20.5 mm in width and 41 mm in height, making it suitable for various industrial applications. The housing is made from durable Plastic (ASA, PMMA), ensuring longevity in demanding environments. The sensor connects via an Cable 4 pin, 2 m, offering easy integration into your system. Elevate Your Project with a Quote for your requirement of Baumer Industrial Ultrasonic Sensor. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
