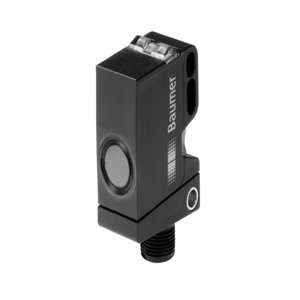

U500.EB0.2-GP2J.72F: 11228075 - Baumer Industrial Ultrasonic Sensor Receiver
Technical Specifications of Baumer Industrial Ultrasonic Sensor Receiver U500.EB0.2-GP2J.72F 11228075:
| Scanning range Sd | 0 β¦ 2000 mm |
| Scanning range far limit Sde | 0 β¦ 2000 mm |
| Output circuit | Push-pull |
| Connection types | Connector M12 5 pin |
Baumer Industrial Ultrasonic Sensor Receiver U500.EB0.2-GP2J.72F, 11228075 Technical Specifications:
| Specification | Value |
|---|---|
| Emitter / receiver | Receiver |
| Scanning range Sd | 0 β¦ 2000 mm |
| Scanning range far limit Sde | 0 β¦ 2000 mm |
| Version | IO-Link |
| Object size (at Sd = 50 mm) | > 4 cmΒ² |
| Hysteresis typ. | 5 % Sde |
| Repeat accuracy | 3 mm |
| Temperature drift | < 2 % Sde |
| Response time ton | < 9 ms |
| Release time toff | < 9 ms |
| Adjustment | qTeach, line-Teach, IO-Link |
| Sonic frequency | 200 kHz |
| Alignment aid | Target indication flashing |
| Output indicator | LED yellow |
| Power on indication | LED green |
| Voltage supply range +Vs | 12 β¦ 30 VDC |
| Current consumption max. (no load) | 25 mA |
| Output circuit | Push-pull |
| Output current | 100 mA |
| Voltage drop Vd | <3.5 VDC |
| Residual ripple | < 10 % Vs |
| Design | Rectangular |
| Housing material | Plastic (ASA, PMMA) |
| Width / diameter | 18 mm |
| Height / length | 45 mm |
| Depth | 32 mm |
| Connection types | Connector M12 5 pin |
| Operating temperature | -25 β¦ +65 Β°C |
| Storage temperature | -40 β¦ +75 Β°C |
| Protection class | IP 67 |
Obtain a Quote for Baumer Industrial Ultrasonic Sensor Receiver U500.EB0.2-GP2J.72F part no: 11228075 at economical prices. Specifications Overview for U500.EB0.2-GP2J.72F, 11228075 reveals Receiver configuration with a scanning range of 0 β¦ 2000 mm and sonic frequency of 200 kHz. The power-on indication is provided by a LED green, and the voltage supply range is between 12 β¦ 30 VDC. Designed with a Rectangular form factor, the housing is made of durable Plastic (ASA, PMMA) for reliable operation in various environments. The sensor has a width of 18 mm and a height of 45 mm with a connection facilitated through an Connector M12 5 pin. It operates efficiently in temperatures ranging from -25 β¦ +65 Β°C, making it suitable for demanding industrial applications. Take the First Step with a Quote for your requirement of Baumer Industrial Ultrasonic Sensor Receiver. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
