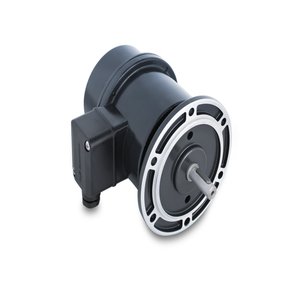

TDP0,2E LS-4 0099004030: 11252181 - Baumer Tachogenerator With Terminal Box
Technical Specifications of Baumer Tachogenerator With Terminal Box TDP0,2E LS-4 0099004030 11252181:
| Size Flange | ø115 mm |
| Shaft Type | ø7 x 30 mm solid shaft (with key) |
| Connection | Cable 5 m |
Baumer Tachogenerator With Terminal Box TDP0,2E LS-4 0099004030 11252181 Technical Specifications:
| Specification | Value |
|---|---|
| Reversal tolerance | ≤0.1 % |
| Linearity tolerance | ≤0.15 % |
| Temperature coefficient | ± 0.05 %/K (open-circuit) |
| Isolation class | B |
| Calibration tolerance | ±1 % |
| Climatic test | Humid heat, constant (IEC 60068-2-3, Ca) |
| Performance | 12 W (speed ≥3000 rpm) |
| Armature-circuit time-constant | <75 µs |
| Open-circuit voltage | 60 V per 1000 rpm |
| Size (flange) | ø115 mm |
| Shaft type | ø7 x 30 mm solid shaft (with key) |
| Flange | B5 flange |
| Protection EN 60529 | IP 55 |
| Torque | 1.5 Ncm |
| Rotor moment of inertia | 1.1 kgcm² |
| Admitted shaft load | ≤60 N axial, ≤80 N radial |
| Material | Housing: aluminium die-cast, Shaft: stainless steel |
| Resistance | IEC 60068-2-6, Vibration 10 g, 10-2000 Hz, IEC 60068-2-27, Shock 300 g, 1 ms |
| Weight approx. | 2.4 kg |
| Connection | Cable 5 m |
| Operating temperature | -30...+130 °C |
| Operating speed | ≤10000 rpm |
Mail Us for your needs in Baumer Tachogenerator With Terminal Box TDP0,2E LS-4 0099004030 with budget-friendly prices. The Main Technical Parameters of TDP0,2E LS-4 0099004030, inludce reversal tolerance of ≤0.1 % and a linearity tolerance of ≤0.15 %, ensuring high precision in performance. The temperature coefficient is ± 0.05 %/K (open-circuit) in open-circuit conditions, while the calibration tolerance is ±1 %, maintaining accuracy even under varying conditions. These encoders deliver 12 W (speed ≥3000 rpm), with an open-circuit voltage range of 60 V per 1000 rpm. The encoders feature a ø115 mm flange size and a torque of 1.5 Ncm, providing reliable operation. Constructed from durable Housing: aluminium die-cast, Shaft: stainless steel, they ensure longevity Connection Cable 5 m . Customize Your Experience with a Quote for your requirement of Baumer Tachogenerator With Terminal Box. Experience the difference with our competitive pricing and superior support over other Suppliers.
