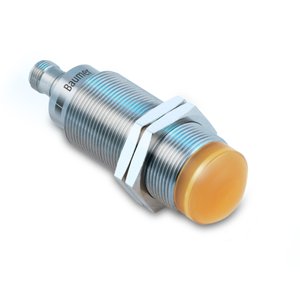

Baumer RR30.DAF0-GGPI.9VF/E029 Radar Sensor
The Baumer RR30.DAF0-GGPI.9VF/E029 Radar Sensor offers a 0.2 … 6 m scanning range, Cylindrical threaded design, and Connector M12 connection. Manufactured by Baumer under the Baumer Radar Sensor category, this model belongs to the R6/RR30 Series.
| Brand | Baumer |
| Product Type | Radar Sensor |
| Model Number | RR30.DAF0-GGPI.9VF/E029 |
Baumer RR30.DAF0-GGPI.9VF/E029 Radar Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Scanning range Sd | 0.2 … 6 m |
| Version | IO-Link dual channel |
| Repeat accuracy | 2 mm |
| Temperature drift | <± 10 mm (Full Scale) |
| Power on indication | LED green |
| Carrier frequency | 122 … 123 GHz |
| Band width | 1 GHz |
| Linearity error | ± 10 mm |
| Modulation type | FMCW |
| Transmitting power (EIRP) | < +20 dBm |
| Aperture angle | 12 ° |
| Voltage supply range +Vs | 12 … 30 VDC |
| Current consumption max. (no load) | 200 mA |
| Baud rate | 230.4 kBaud (COM 3) |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes, Vs to GND |
| Output circuit | IO-Link / push-pull |
| Design | Cylindrical threaded |
| Housing material | Stainless steel 1.4404 (V4A) |
| Width / diameter | 30 mm |
| Height / length | 97 mm |
| Connection types | Connector M12 |
| Operating temperature | -40 … +65 °C |
| Storage temperature | -40 … +85 °C |
| Protection class | IP 68/69K & proTect+ |
| Scanning range close limit Sdc | 0.2 … 6 m |
| Scanning range far limit Sde | 0.2 … 6 m |
| Response time ton | < 40 ms |
| Release time toff | < 40 ms |
| Power-up drift | Compensated after 20 min. |
| Adjustment | IO-Link |
| Light indicator | LED yellow |
| Range resolution | 500 mm |
| Hysteresis typ. | 5 % Sde |
| Output current | 100 mA, 50 mA (out 2) |
| Voltage drop Vd | <2.5 VDC |
| Interface | IO-Link V1.1 |
| Cycle time | ≥ 4 ms |
| Process data length | 208 Bit |
