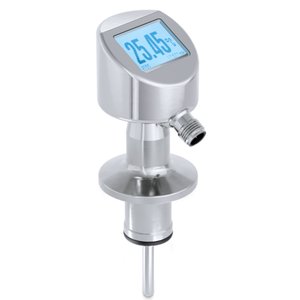

Baumer PT55H Temperature Measurement
The Baumer PT55H Temperature Measurement offers a 0 β¦ 60 s , programmable. Manufactured by Baumer under the Baumer Temperature Measurement category, this model belongs to the VS Series.
| Brand | Baumer |
| Product Type | Temperature Measurement |
| Model Number | PT55H |
Baumer PT55H Temperature Measurement β Technical Specifications
| Specification | Value |
|---|---|
| Degree of protection (EN 60529) | IP67, IP69K , with appropriate mating connector |
| Humidity | β€ 100 % RH , condensing |
| Vibration (sinusoidal) (EN 60068-2-6) | 1.6 mm p-p (2 β¦ 25 Hz), 4 g (25 β¦ 100 Hz), 1 octave / min. |
| Damping | 0 β¦ 60 s , programmable |
| Accuracy | Β± 0.05 % FSR |
| Load resistance | Rs β€ (V DC - 15 V)/23 mA, 2-wire mode, Rs β€ (V DC - 10 V)/23 mA, 3- & 4-wire mode |
| Ripple immunity | < 1 % FSR (1 Vrms, 50Hz...1kHz) |
| Power-up time | < 1500 ms @ 24 V |
| Effect of variations in supply voltage | < 0.01 % FSR/V (Β± 1.6 Β΅A/V), deviating from 24 VDC |
| EMC | EN 61326-1, EN 61326-2-3, Deviation during immunity testing β€ 0.2% FSR |
| Step response time, T90 | < 25 ms |
| Process temperature | Refer to section "Operating conditions" |
| Pt100 accuracy class (EN 60751) | 1/1 B Β± (0.3 + 0.005 Γ t)Β°C, 1/1 A Β± (0,15 + 0,002 Γ t)Β°C, 1/3 B Β± 1/3 Γ (0.3 + 0.005 Γ t)Β°C, 1/6 B Β± 1/6 Γ (0.3 + 0.005 Γ t)Β°C |
| Sensor length | Refer to section "Ordering information", Other lengths > 3000 mm on request |
| Sensor tube material | AISI 316L (1.4404) |
| Surface roughness wetted parts | Ra β€ 0.8 Β΅m, Ra β€ 0.8 Β΅m, electropolished, optional, Ra β€ 0.4 Β΅m, optional, Ra β€ 0.4 Β΅m, electropolished, optional |
| Thermal response time, T50 | RTD element and transmitter combined, < 2.5 s , Γ4 mm, < 6.5 s , Γ6 mm, < 10.5 s , Γ8 mm |
| Temperature drift (by ambient) | < 0.1 % FSR/K (Β± 1.6 Β΅A/K), Factor of change in ambient temperature from 25Β°C |
| Output type | PNP, NPN, Digital (push-pull) |
| Switching logic | High-Active, Low-Active |
| Voltage drop | < 2 V, switching output |
| Current rating | 100 mA , max. |
| Off leak current | < 160 ΞΌA , max. |
| Hygiene | 3-A (74-07), EHEDG EL Class I |
| Max. measuring error | Β± 0.06 % FSR @ 25 Β°C, Including zero-point and span error, nonlinearity (by terminal base line), hysteresis and non-repeatability (EN 61298-2) |
| Temperature coefficient | < 0.025 K/K, Factor of change in ambient temperature from 25Β°C |
| Interface | IO-Link 1.1, With FlexProgrammer 9701 |
Ask for the Pricing of Baumer Temperature Measurement PT55H at unbeatable prices. Detailed Specifications of PT55H, feature transmitter is rated IP67, IP69K , with appropriate mating connector for protection and operates efficiently in humidity levels below β€ 100 % RH , condensing. It meets Resolution. Built to withstand industrial conditions, it endures Up/Down scaling limits of , with a Ripple immunity < 1 % FSR (1 Vrms, 50Hz...1kHz) standards. The damping is 0 β¦ 60 s , programmable, providing precise control. The output signal is an configuration, ensuring stable and accurate transmission. With an accuracy of Β± 0.05 % FSR and temperature drift of , it maintains exceptional precision. The load resistance follows Rs β€ (V DC - 15 V)/23 mA, 2-wire mode, Rs β€ (V DC - 10 V)/23 mA, 3- & 4-wire mode for optimal operation. Now's the Time to Secure a Quote for your requirement of Temperature Measurement. We're committed to offering more favorable pricing and more responsive support than other Traders.
