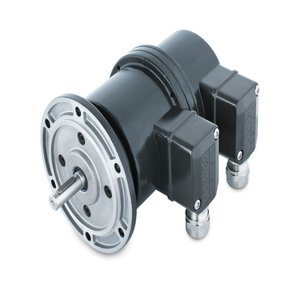

Baumer POGS 90 Rotary Encoder
The Baumer POGS 90 Rotary Encoder offers a ø115 mm size, ppr, Optical method, and Terminal box connection. Manufactured by Baumer under the Baumer Rotary Encoder category, this model belongs to the Heavyduty Incremental Encoder.
| Sensing Method | Optical |
| Connection | Terminal box |
Baumer POGS 90 Rotary Encoder – Technical Specifications
| Specification | Value |
|---|---|
| Voltage supply | 5 VDC ±10 %, 9...30 VDC |
| Consumption w/o load | ≤90 mA |
| Phase shift | 90 ° |
| Reference signal | Zero pulse, width 90° |
| Sensing method | Optical |
| Output signals | K1, K2, K0 + inverted |
| Output stages | SinCos 1 Vpp |
| Size (flange) | ø115 mm |
| Shaft type | ø11 mm solid shaft |
| Admitted shaft load | ≤250 N axial, ≤350 N radial |
| Flange | EURO flange B10 |
| Protection EN 60529 | IP 66 |
| Operating speed | ≤10000 rpm (mechanical) |
| Operating torque typ. | 2 Ncm |
| Rotor moment of inertia | 320 gcm² |
| Material | Housing: aluminium die-cast alloy and stainless steel, Shaft: stainless steel |
| Operating temperature | -20...+85 °C |
| Resistance | IEC 60068-2-6, Vibration 10 g, 10-2000 Hz, IEC 60068-2-27, Shock 100 g, 11 ms |
| Corrosion protection | IEC 60068-2-52 Salt mist, for ambient conditions C4 according to ISO 12944-2 |
| Connection | Terminal box |
| Weight approx. | 1.5 kg |
Call us for Baumer 5000 Sinewaves Cycles Per Turn Sine Encoder POGS 90 part no: 11064874 at the best rates. Technical Attributes of POGS 90, 11064874 are voltage supply of 5 VDC ±10 %, 9...30 VDC and pulses per revolution ranging from . The encoders provide a phase shift of 90 ° and a duty cycle of , with a Zero pulse, width 90°. Using Optical sensing technology, the encoders offer output signals including K1, K2, K0 + inverted. The available output stages are SinCos 1 Vpp, ensuring versatile performance. The encoders come in an ø115 mm flange size and operate at speeds of up to -20...+85 °C. Constructed with a durable Housing: aluminium die-cast alloy and stainless steel, Shaft: stainless steel, they offer connections via Terminal box. Unlock Exclusive Pricing with a Quote for your requirement of Baumer 5000 Sinewaves Cycles Per Turn Sine Encoder. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
