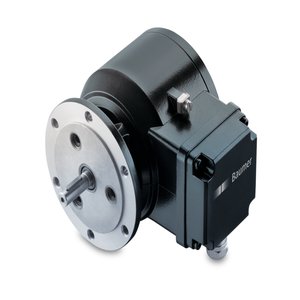

Baumer POG10R DN 1024 I M25 Rotary Encoder
The Baumer POG10R DN 1024 I M25 Rotary Encoder offers a ΓΈ115 mm size, 1024 ppr, Optical method, and Terminal box connection. Manufactured by Baumer under the Baumer Rotary Encoder category, this model belongs to the Heavyduty Incremental Encoder.
| Sensing Method | Optical |
| Connection | Terminal box |
Baumer POG10R DN 1024 I M25 Rotary Encoder β Technical Specifications
| Specification | Value |
|---|---|
| Voltage supply | 9...30 VDC |
| Consumption w/o load | β€100 mA |
| Pulses per revolution | 1024 |
| Phase shift | 90 Β° Β±20Β° |
| Duty cycle | 40β¦60 % |
| Reference signal | Zero pulse, width 90Β° |
| Sensing method | Optical |
| Output signals | K1, K2, K0 + inverted |
| Output stages | HTL-P (power linedriver) |
| Size (flange) | ΓΈ115 mm |
| Shaft type | ΓΈ11 mm solid shaft |
| Admitted shaft load | β€300 N axial, β€450 N radial |
| Flange | EURO flange B10 |
| Protection EN 60529 | IP 66 |
| Operating speed | β€12000 rpm (mechanical) |
| Operating torque typ. | 2 Ncm |
| Rotor moment of inertia | 212 gcmΒ² |
| Material | Housing: aluminium die-cast, Shaft: stainless steel |
| Operating temperature | -40...+100 Β°C |
| Resistance | IEC 60068-2-6, Vibration 20 g, 10-2000 Hz, IEC 60068-2-27, Shock 200 g, 6 ms |
| Corrosion protection | IEC 60068-2-52 Salt mist, for ambient conditions CX (C5-M) according to ISO 12944-2 |
| Connection | Terminal box |
| Weight approx. | 3.1 kg |
Call us for Baumer EURO Flange B10 Encoder POG10R DN 1024 I M25 part no: 11721535 at the best rates. Technical Attributes of POG10R DN 1024 I M25, 11721535 are voltage supply of 9...30 VDC and pulses per revolution ranging from 1024. The encoders provide a phase shift of 90 Β° Β±20Β° and a duty cycle of 40β¦60 %, with a Zero pulse, width 90Β°. Using Optical sensing technology, the encoders offer output signals including K1, K2, K0 + inverted. The available output stages are HTL-P (power linedriver), ensuring versatile performance. The encoders come in an ΓΈ115 mm flange size and operate at speeds of up to -40...+100 Β°C. Constructed with a durable Housing: aluminium die-cast, Shaft: stainless steel, they offer connections via Terminal box. Unlock Exclusive Pricing with a Quote for your requirement of Baumer EURO Flange B10 Encoder. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
