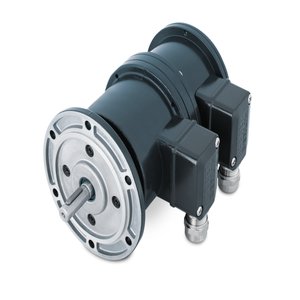

Baumer POG 90 + ESL 90 Rotary Encoder
The Baumer POG 90 + ESL 90 Rotary Encoder offers a ΓΈ115 mm size, 1024 β¦ 10000 ppr, Optical method, and 2x terminal box connection. Manufactured by Baumer under the Baumer Rotary Encoder category, this model belongs to the Heavyduty Encoders.
| Voltage Supply | 9...30 VDC; 5 VDC Β±5 % |
| Sensing Method | Optical |
| Size (flange) | ΓΈ115 mm |
| Connection | 2x terminal box |
Baumer POG 90 + ESL 90 Rotary Encoder β Technical Specifications
| Specification | Value |
|---|---|
| Voltage supply | 9...30 VDC; 5 VDC Β±5 % |
| Consumption w/o load | β€100 mA |
| Pulses per revolution | 1024 β¦ 10000 |
| Phase shift | 90 Β° Β±8Β° |
| Duty cycle | 44β¦56 % |
| Reference signal | Zero pulse, width 90Β° |
| Output frequency | β€250 kHz |
| Output signals | K1, K2, K0 + inverted |
| Output stages | HTL, TTL/RS422 |
| Sensing method | Optical |
| Switching accuracy | Β± 4 % (β€1500 rpm), Β± 2 % (>1500 rpm) |
| Switching outputs | 1 output, speed control |
| Output switching capacity | β€6 A / 250 VAC; β€1 A / 48 VDC, (EAC: <50 VAC / 75 VDC) |
| Minimum switching current | 100 mA |
| Size (flange) | ΓΈ115 mm |
| Shaft type | ΓΈ11 mm solid shaft |
| Admitted shaft load | β€250 N axial, β€350 N radial |
| Protection EN 60529 | IP 66 |
| Range of switching speed (ns) | 650...6000 rpm |
| Operating torque typ. | 3 Ncm |
| Rotor moment of inertia | 320 gcmΒ² |
| Material | Housing: aluminium die-cast, Shaft: stainless steel |
| Operating temperature | -20...+85 Β°C |
| Resistance | IEC 60068-2-6, Vibration 5 g, 10-2000 Hz, IEC 60068-2-27, Shock 50 g, 11 ms |
| Corrosion protection | IEC 60068-2-52 Salt mist, for ambient conditions C4 according to ISO 12944-2 |
| Connection | 2x terminal box |
| Weight approx. | 2.6 kg |
| Flange | EURO flange B10 |
| Operating speed | β€6000 rpm |
| Switching delay time | β€40 ms |
Call us for Baumer 10000 Pulses Per Revolution Incremental Encoder POG 90 + ESL 90 at the best rates. Technical Attributes of N/A, are voltage supply of 9...30 VDC; 5 VDC Β±5 %, and consumption of β€100 mA without load. These encoders offer a range of pulses per revolution from 1024 β¦ 10000 providing versatility in precision. The output stages include HTL, TTL/RS422 for flexible integration. The encoders come in a robust ΓΈ115 mm flange size and can handle shaft loads of up to β€250 N axial, β€350 N radial. With an operating torque of 3 Ncm, they are designed for smooth performance. The Housing: aluminium die-cast, Shaft: stainless steel and operates in temperatures ranging from -20...+85 Β°C. Connection options include 2x terminal box. Unlock Exclusive Pricing with a Quote for your requirement of Baumer 10000 Pulses Per Revolution Incremental Encoder. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
