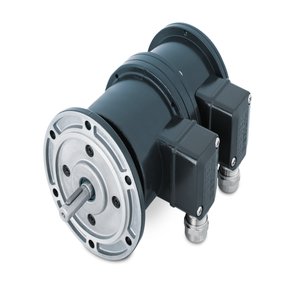

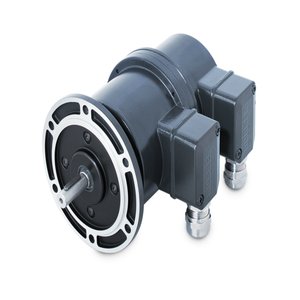

Baumer POG 9 G Rotary Encoder
The Baumer POG 9 G Rotary Encoder offers a ø115 mm size, 300 … 5000 ppr, Optical method, and 2x terminal box connection. Manufactured by Baumer under the Baumer Rotary Encoder category, this model belongs to the Heavyduty Incremental Encoder.
| Sensing Method | Optical |
| Connection | 2x terminal box |
Baumer POG 9 G Rotary Encoder – Technical Specifications
| Specification | Value |
|---|---|
| Voltage supply | 9...30 VDC, 5 VDC ±5 % |
| Consumption w/o load | ≤100 mA |
| Pulses per revolution | 300 … 5000 |
| Phase shift | 90 ° ±20° |
| Duty cycle | 40…60 % |
| Reference signal | Zero pulse, width 90° |
| Sensing method | Optical |
| Output signals | K1, K2, K0 + inverted, Error output (option EMS) |
| Output stages | HTL-P (power linedriver), TTL/RS422 |
| Size (flange) | ø115 mm |
| Shaft type | ø11 mm solid shaft |
| Admitted shaft load | ≤250 N axial, ≤350 N radial |
| Flange | EURO flange B10 |
| Protection EN 60529 | IP 56 |
| Operating speed | ≤12000 rpm (mechanical) |
| Operating torque typ. | 2 Ncm |
| Rotor moment of inertia | 200 gcm² |
| Material | Housing: aluminium die-cast, Shaft: stainless steel |
| Operating temperature | -30...+100 °C, -25...+100 °C (>3072 pulses) |
| Resistance | IEC 60068-2-6, Vibration 10 g, 10-2000 Hz, IEC 60068-2-27, Shock 300 g, 1 ms |
| Corrosion protection | IEC 60068-2-52 Salt mist, for ambient conditions C4 according to ISO 12944-2 |
| Connection | 2x terminal box |
| Weight approx. | 2 kg |
Ask for the Pricing of Baumer Incremental Encoder With Shaft POG 9 G part no: at unbeatable prices. Detailed Specifications of POG 9 G, feature voltage supply of 9...30 VDC, 5 VDC ±5 % and pulses per revolution ranging from 300 … 5000. The encoders provide a phase shift of 90 ° ±20° and a duty cycle of 40…60 %, with a Zero pulse, width 90°. Using Optical sensing technology, the encoders offer output signals including K1, K2, K0 + inverted, Error output (option EMS). The available output stages are HTL-P (power linedriver), TTL/RS422, ensuring versatile performance. The encoders come in an ø115 mm flange size and operate at speeds of up to -30...+100 °C, -25...+100 °C (>3072 pulses). Constructed with a durable Housing: aluminium die-cast, Shaft: stainless steel, they offer connections via 2x terminal box. Now's the Time to Secure a Quote for your requirement of Baumer Incremental Encoder With Shaft. We're committed to offering more favorable pricing and more responsive support than other Traders.
