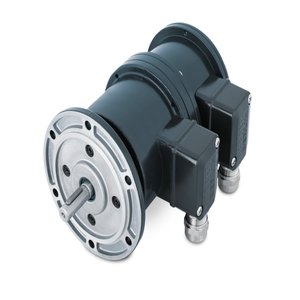

Baumer POG 9 + ESL 93 Rotary Encoder
The Baumer POG 9 + ESL 93 Rotary Encoder offers a ø115 mm size, 300 … 5000 ppr, Optical method, and Terminal box connection. Manufactured by Baumer under the Baumer Rotary Encoder category, this model belongs to the Heavyduty Encoders.
| Voltage Supply | 12 VDC ±10 % |
| Sensing Method | Optical |
| Size (flange) | ø115 mm |
| Connection | Terminal box |
Baumer POG 9 + ESL 93 Rotary Encoder – Technical Specifications
| Specification | Value |
|---|---|
| Voltage supply | 12 VDC ±10 % |
| Consumption w/o load | ≤5 mA |
| Pulses per revolution | 300 … 5000 |
| Phase shift | 90 ° ±20° |
| Duty cycle | 40…60 % |
| Reference signal | Zero pulse, width 90° |
| Output frequency | ≤120 kHz, ≤300 kHz (on request) |
| Output signals | K1, K2, K0 + inverted, Error output (option EMS) |
| Output stages | HTL-P (power linedriver), TTL/RS422 |
| Sensing method | Optical |
| Switching accuracy | ± 4 % (≤1500 rpm), ± 2 % (>1500 rpm) |
| Switching outputs | 3 outputs, speed control |
| Size (flange) | ø115 mm |
| Shaft type | ø11 mm solid shaft |
| Admitted shaft load | ≤250 N axial, ≤350 N radial |
| Protection EN 60529 | IP 56 |
| Speed (n) | ≤5000 rpm |
| Range of switching speed (ns) | 3x 200...5000 rpm |
| Operating torque typ. | 3 Ncm |
| Rotor moment of inertia | 220 gcm² |
| Material | Housing: aluminium die-cast, Shaft: stainless steel |
| Operating temperature | -20...+85 °C |
| Resistance | IEC 60068-2-6, Vibration 5 g, 10-2000 Hz, IEC 60068-2-27, Shock 150 g, 1 ms |
| Corrosion protection | IEC 60068-2-52 Salt mist, for ambient conditions C4 according to ISO 12944-2 |
| Connection | Terminal box |
| Weight approx. | 2 kg |
| Flange | EURO flange B10 |
| Switching delay time | ≤40 ms |
Obtain a Quote for Baumer HTL Power Linedriver Incremental Encoder POG 9 + ESL 93 at economical prices. Specifications Overview for N/A, reveals voltage supply of 12 VDC ±10 %, and consumption of ≤5 mA without load. These encoders offer a range of pulses per revolution from 300 … 5000 providing versatility in precision. The output stages include HTL-P (power linedriver), TTL/RS422 for flexible integration. The encoders come in a robust ø115 mm flange size and can handle shaft loads of up to ≤250 N axial, ≤350 N radial. With an operating torque of 3 Ncm, they are designed for smooth performance. The Housing: aluminium die-cast, Shaft: stainless steel and operates in temperatures ranging from -20...+85 °C. Connection options include Terminal box. Take the First Step with a Quote for your requirement of Baumer HTL Power Linedriver Incremental Encoder. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
