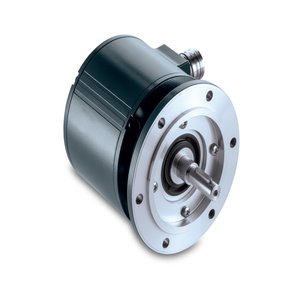

Baumer POG 86 + FSL Rotary Encoder
The Baumer POG 86 + FSL Rotary Encoder offers a ΓΈ115 mm size, 500 β¦ 5000 ppr, Optical method, and 2x terminal box connection. Manufactured by Baumer under the Baumer Rotary Encoder category, this model belongs to the Heavyduty Incremental Encoder.
| Sensing Method | Optical |
| Switching Outputs | 1 output, speed control |
| Connection | 2x terminal box |
Baumer POG 86 + FSL Rotary Encoder β Technical Specifications
| Specification | Value |
|---|---|
| Voltage supply | 9...30 VDC, 5 VDC Β±5 % |
| Consumption w/o load | β€100 mA |
| Pulses per revolution | 500 β¦ 5000 |
| Phase shift | 90 Β° Β±20Β° |
| Duty cycle | 45β¦55 %, 40β¦60 % (>3072 pulses) |
| Reference signal | Zero pulse, width 90Β° |
| Sensing method | Optical |
| Output signals | K1, K2, K0 + inverted, Error output (option EMS) |
| Output stages | HTL-P (power linedriver), TTL/RS422 |
| Switching accuracy | Β± 4 % (Ξn = 2 rpm/s);, 20 % (Ξn = 1500 rpm/s) |
| Switching outputs | 1 output, speed control |
| Output switching capacity | β€6 A / 230 VAC, β€1 A / 125 VDC, (EAC: <50 VAC / 75 VDC) |
| Switching hysteresis | 40 % of switching speed |
| Size (flange) | ΓΈ115 mm |
| Shaft type | ΓΈ11 mm solid shaft |
| Admitted shaft load | β€250 N axial, β€350 N radial |
| Flange | EURO flange B10 |
| Protection EN 60529 | IP 56 |
| Operating torque typ. | 3 Ncm |
| Rotor moment of inertia | 220 gcmΒ² |
| Material | Housing: aluminium, coated, Shaft: stainless steel |
| Operating temperature | -40...+100 Β°C, -25...+100 Β°C (>3072 pulses) |
| Resistance | IEC 60068-2-6, Vibration 5 g, 10-2000 Hz, IEC 60068-2-27, Shock 150 g, 1 ms |
| Corrosion protection | IEC 60068-2-52 Salt mist, for ambient conditions C4 according to ISO 12944-2 |
| Connection | 2x terminal box |
| Weight approx. | 1.9 kg |
Obtain a Quote for Baumer TTLIncremental Encoder Solution POG 86 + FSL part no: 11064874 at economical prices. Specifications Overview for POG 86 + FSL, 11064874 reveals voltage supply of 9...30 VDC, 5 VDC Β±5 % and pulses per revolution ranging from 500 β¦ 5000. The encoders provide a phase shift of 90 Β° Β±20Β° and a duty cycle of 45β¦55 %, 40β¦60 % (>3072 pulses), with a Zero pulse, width 90Β°. Using Optical sensing technology, the encoders offer output signals including K1, K2, K0 + inverted, Error output (option EMS). The available output stages are HTL-P (power linedriver), TTL/RS422, ensuring versatile performance. The encoders come in an ΓΈ115 mm flange size and operate at speeds of up to -40...+100 Β°C, -25...+100 Β°C (>3072 pulses). Constructed with a durable Housing: aluminium, coated, Shaft: stainless steel, they offer connections via 2x terminal box. Take the First Step with a Quote for your requirement of Baumer TTLIncremental Encoder Solution. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
